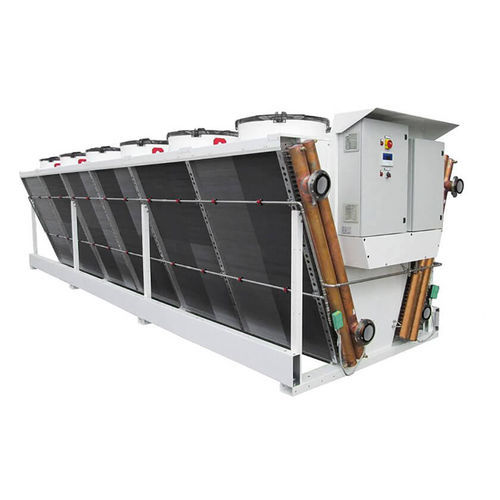

Liquid cooler FVN-PFVN series
Add to favorites
Compare this product
Characteristics
- Material
- liquid
- Power
Min.: 1.92 kW
Max.: 57.6 kW
- Flow rate
Min.: 47,050 m³/h
(1,661,555.069 ft³/h)Max.: 537,350 m³/h
(18,976,336.163 ft³/h)- Pressure
10 bar
(145.038 psi)
Description
_All finned coils of liquid coolers are produced with copper pipes and aluminium
fins with high efficiency pyramidal corrugation
_The frame of finned coils is produced in galvanized steel with thickness suitable to weight
of heat exchanger.
_All pipes are expanded on aluminium counter-endplates to avoid any contact between
copper pipes and steel frame and therefore any possible pipe damage.
External Frame
_Liquid coolers are produced with galvanized steel frame, epoxy painted RAL9016.
_Fan cowls are high type to get max. performances and min. noise
Fan Motors
_All Standard fans are 400V - 3F - 50Hz
_On request: fans 60 Hz available for all diameters
_Fans have external rotor, protection IP54, very high efficiency.
_Motors and fans are statically and dynamically balanced.
