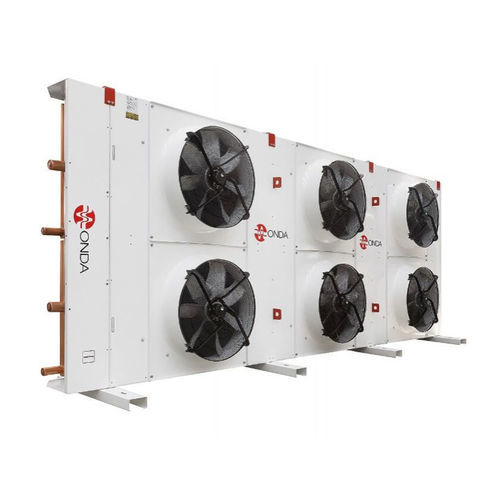

Cooled condenser CND series

copper

_All finned coils of remote condensers are produced with copper pipes and aluminium fins with high efficiency pyramidal corrugation _The frame of finned coils is produced in galvanized steel with thickness suitable to weight of heat exchanger. _All pipes are expanded on aluminium counter-endplates to avoid any contact between copper pipes and steel frame and therefore any possible pipe damage. _Endplate holes corresponding to header nipples are larger to avoid that vibrations and dilatations can damage pipes. External Frame _Condensers are produced with galvanized steel frame, epoxy painted RAL9016. _Fan cowls are high type to get max. performances and min. noise Fan Motors All Standard fans are 400V - 3F - 50Hz _On request: fans 60 Hz available for all diameters _Fans have external rotor, protection IP54, very high efficiency. _Motors and fans are statically and dynamically balanced. Declared Capacities _Declared capacities are calculated and tested in our test lab according to ENV327. _Ambient temperature +25°C _Condensation temperature +40°C _Refrigerant R404a Test _All coils are tested with dry air and are properly degreased. _Standard design pressure is 30 bar. The version with max. design pressure 45 bar is available for all models
