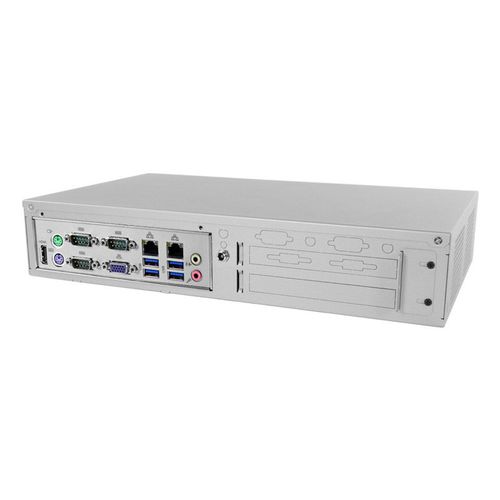

Box computer MC610-10

Intel® Celeron®Intel® Apollo LakeIntel® Pentium

Efficient Apollo Lake processing combined with fully featured I/O in a durable, expandable chassis. Intel Celeron N3350 or Pentium N4200 processor 6 USB, 3 COM, PCIe x1 slot Up to 8GB of DDR3L 1866MHz memory Hardware Line: Industrial (Fanned) Cooling Type: Actively Cooled Processor: Intel Celeron N3350 Intel Pentium N4200 Processor Speed: 1.1 GHz Max Turbo Frequency (GHz): 2.400000 Max Burst Frequency (GHz): 2.40 (N3350), 2.50 (N4200) Processor Socket: Onboard (BGA) Processor Generation: Apollo Lake Processor Cores: 2, 4 Chipset: Shared with CPU Graphics/GPU: Intel HD Graphics 500 Memory Type: DDR3L SO-DIMM (non-ECC) Memory Capacity: 8 GB Memory Speed: 1866 MHz Memory Slot Count: 2.000000 Number of Displays Supported: 2 Rear I/O: 1 VGA port, 1 HDMI port, 2 Gb LAN ports, 4 USB 3.2 Gen 1 ports, 3 RS-232/422/485 COM ports, 2 Audio Jacks (Mic-in; Line-out), 2 PS/2 ports Front I/O: 2 USB 2.0 ports, Power Button Expansion Options: 1x M.2 2230 E-key, 1x mPCIe (full/half-size), 1x PCIe x1 slot Storage Options: 1x M.2 2242/60/80 M-key, 1x 2.5" HDD/SSD LAN Controller: Realtek RTL8111G System Monitoring: Watchdog Timer Input Voltage: 12 VDC Power Input: DC Jack Operating Temperature Range: 0 ~ 50°C Dimensions (WxHxD): 334 x 64 x 199.6 mm / 13.1" x 2.5" x 7.9" Case Type: Compact, Customizable, Modular Case Material: Steel Port Punchouts: 3 Antenna Holes Mounting Options: DIN-mount, Wall-mount
