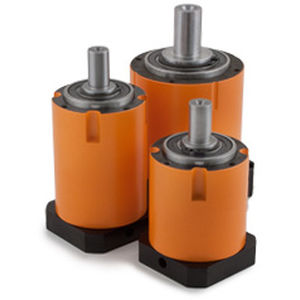

Planetary gear reducer AL seriescoaxial50 - 100 Nm5 - 10 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Torque
- 50 - 100 Nm, 5 - 10 Nm, 20 - 50 Nm, 10 - 20 Nm
- Performance
- low-backlash
- Applications
- for continuous operation
- Rotational speed
4,800 rpm
(30,159.29 rad.min-1)
Description
Onvio's value line gearbox family consists of in-line, NEMA, and right angle gearboxes that offer exceptional torque ratings, bearing capacity and low backlash for many of today's servo and stepper applications.
The modular concept allows engineers to select from single or two stages of planetary gearing to create 14 standard ratios from 3:1 to 100:1. A 1:1 right angle stage can be added for tight spaces.
Features include:
Four frame sizes
Carburized and skived spur gearing
Steel housing and ring gear
Backlash as low as 10 arc-minutes
High capacity output bearings
Optional NEMA output dimensions
20,000 hour life
Grease filled for life and maintenance free
