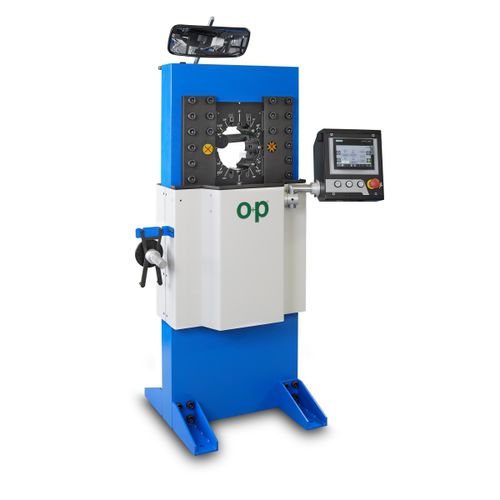

Hose crimping machine TUBOMATIC V150ES
automatichydraulicPLC-controlled

Hose crimping machine - TUBOMATIC V150ES - OP Srl - automatic / hydraulic / PLC-controlled
Hose crimping machine - TUBOMATIC V150ES - OP Srl - automatic / hydraulic / PLC-controlled
Add to favorites
Compare this product


Characteristics

Product handled
for hoses
Operational mode
automatic
Drive type
hydraulic
Other characteristics
PLC-controlled
Crimping force

2,942 kN

Crimping capacity

118 mm
(4.6 in)

Description

The volume crimper Tubomatic V150 ES is ideal for crimping hydraulic hoses up to 2"1/2 six spirals and industrial hoses up to 4" (with special dies). MAIN FEATURES: - ES4 Siemens PLC control with 7'' colour touch-screen display; - self lubricating moving components; - silent pump; - particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings; - back limit switch; - protractor for fittings orientation; - hydraulic power pack included. 6 SPIRALS 2 PIECES2 1/2'' INDUSTRIAL HOSE4'' MAX DIAM.118 mm (4.6'') CRIMPING/HOUR1365 CLOSING SPEED12mm/sec (0.4''/sec) CRIMPING SPEED2.2 mm/sec (0.08''/sec) OPENING SPEED35 mm/sec (1.3''/sec) DIE OPENINGØ + 70 mm (Ø + 2.7'') MAX. OPENING WITHOUT DIES186 mm (7.3'') STANDARD VOLTAGE375V-420V 50HZ 3PH MOTOR POWER5,5 Kw (7.5 Hp) A=10,74 DIMENSIONS920x730x1605 mm (36.2''x28.7''x63.1'') WEIGHT WITHOUT OIL1228 KG (2707 Lbs)
