Hose crimping machine TUBOMATIC V340I ES
automatichydraulicPLC-controlled

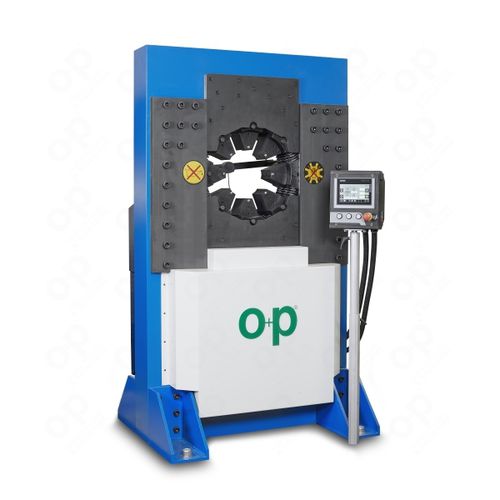

Hose crimping machine - TUBOMATIC V340I ES - OP Srl - automatic / hydraulic / PLC-controlled
Hose crimping machine - TUBOMATIC V340I ES - OP Srl - automatic / hydraulic / PLC-controlled
Add to favorites
Compare this product


Characteristics

Product handled
for hoses
Operational mode
automatic
Drive type
hydraulic
Other characteristics
PLC-controlled
Crimping force

8,140 kN

Crimping capacity

350 mm
(13.8 in)

Description

The crimper V340I ES is the perfect solution to crimp industrial hoses up to 12'' with big flanges. MAIN FEATURES: -ES4 Siemens PLC control with 7'' colour touch-screen display; - self lubricating moving components; silent pump; - particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings; back limit switch; - protractor for fittings orientation; - hydraulic power pack included; - mobile control board. 6 SPIRALS 2 PIECES3'' INDUSTRIAL HOSE12'' MAX. DIAM.350 mm (13.8'') DIE OPENINGØ + 155 mm (Ø + 6.1'') MAX. OPENING WITHOUT DIES468 mm (18.4'') STANDARD VOLTAGE375V-420V 50Hz 3ph MOTOR POWER11 Kw (15 Hp) A=20,76 DIMENSIONS LxWxH1200x950x2080 mm (47.2''x37.4''x81.8'') WEIGHT WITHOUT OIL5235 Kg (11541 Lbs) OIL300 Lt. HYDRAULIC POWER PACK SEPARATED FROM THE MACHINEincl. HYDRAULIC POWER PACK DIMENSIONS LxWxH925x669x1314 mm (36.4''x26.3''x51.7'') HYDRAULIC POWER PACK WEIGHT395 Kg (871 Lbs)
