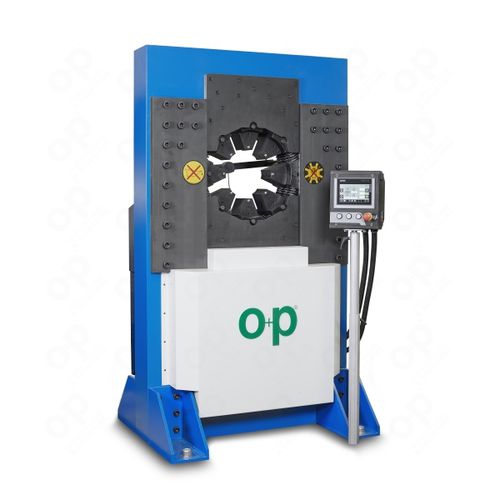

Hose crimping machine TUBOMATIC V300I ESautomatichydraulicPLC-controlled
Add to favorites
Compare this product
Characteristics
- Product handled
- for hoses
- Operational mode
- automatic
- Drive type
- hydraulic
- Other characteristics
- PLC-controlled
- Crimping force
6,472 kN
- Crimping capacity
350 mm
(13.8 in)
Description
The crimpng machine V340I ES is able to crimp industrial hoses up to 10'' with big flanges.
MAIN FEATURES:
-ES4 Siemens PLC control with 7'' colour touch-screen display;
- self lubricating moving components;
- silent pump;
- particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings;
- back limit switch;
- protractor for fittings orientation;
- hydraulic power pack included;
- mobile control board.
6 SPIRALS 2 PIECES3''
INDUSTRIAL HOSE12''
MAX. DIAM.350 mm (13.8'')
DIE OPENINGØ + 155 mm (Ø + 6.1'')
MAX. OPENING WITHOUT DIES468 mm (18.4'')
STANDARD VOLTAGE375V-420V 50Hz 3ph
MOTOR POWER7,5 Kw (10 Hp)
DIMENSIONS LxWxH1200x950x2080 mm (47.2''x37.4''x81.8'')
OIL300 Lt.
HYDRAULIC POWER PACK SEPARATED FROM THE MACHINEincl.
HYDRAULIC POWER PACK DIMENSIONS LxWxH925x669x1268 mm (36.4''x26.3''x49.9'')
