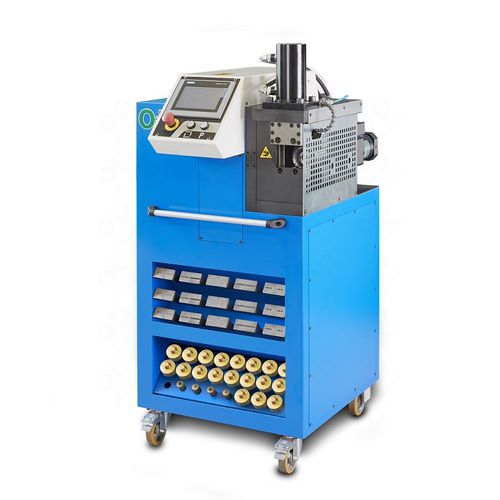

Pipe-flaring machine UNISPEED USFL90/37ES6/28

UNISPEED USFL 90/37 ES 6/28 is the new machine for 37° and 90° orbital flaring of hydraulic rigid tubes ends. The innovative clamping system enables to process straight and of reduced dimensions rigid tubes, so this machine is the ideal solution for tubes with bends up to 180° with a tight radius, such as shaped rigid tubes, steel and hose combined connections, etc. The machine, which requires only one tool change to carry out the flaring operations, uses a cold orbital forming process to create a flat and smooth sealing surface at 90° and 37° with a suitable rugosity for the O-Ring seal. The different possibilities of adjustment and configuration of the USFL 90/37 ES 6/28 allow to obtain any flaring diameter and thickness. The new electronic control with a color touch screen display ensures enhanced performances and makes USFL 90/37 ES 6/28 particularly suitable for series production. The machine is fully programmable and settable, with the possibility to recall previously set recipes. It is possible to flare tubes from Ø 6 to 28 (2.5 mm thickness) depending on the kind of material they are made of. The USFL 90/37 ES 6/28 can be equipped with two front tool-holder compartments upon request and an automated tools lubrication system, which acts by means of a dedicated unit. 90° flaring tools for ORFS Parker available upon request. Flaring tools in compliance with UNI ISO 8434-2 and DIN 3949 standards. 90 FLARINGST 37.4: 6 - 28x2,5 mm (1/4''-1''x0.1'') 37 FLARINGST 37.4: 6 - 28x2,5 mm (1/4''-1''x0.1'') 90 FLARINGAISI 316 TI: 6 - 18x2,5 mm (1/4''-5/8''x0.1'') 37 FLARINGAISI 316 TI: 6 - 18x2,5 mm (1/4''-5/8''x0.1'') DIMENSIONS L x W x H706x887x1430 mm (27.7''x37.2''x56.3'')
