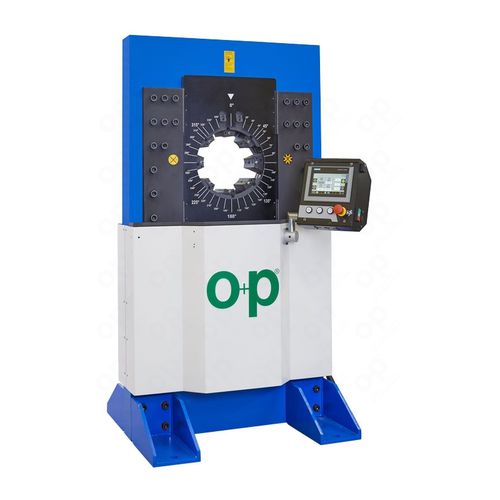

Hydraulic crimping machine TUBOMATIC V160 IES

for hosesautomaticPLC-controlled

The volume crimper Tubomatic V160 IES is ideal for crimping hydraulic hoses up to 3" six spirals and industrial hose up to 6" (with special dies). MAIN FEATURES: - ES4 Siemens PLC control with 7'' colour touch-screen display; - self lubricating moving components; - silent pump; - particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings; - back limit switch; - protractor for fittings orientation; - hydraulic power pack included. 6 SPIRALS 2 PIECES3'' INDUSTRIAL HOSE6'' MAX DIAM.213 mm (8.4'') CRIMPING/HOUR850 CLOSING SPEED16,8 mm/sec (0.6''/sec) CRIMPING SPEED1,9 mm/sec (0.0''/sec) OPENING SPEED55 mm/sec (2.1''/sec) DIE OPENINGØ + 130 mm (Ø + 5.1'') MAX. OPENING WITHOUT DIES283 mm (11.1'') STANDARD VOLTAGE375V-420V 50HZ 3PH MOTOR POWER7,5 Kw (10 Hp) A=14,39 DIMENSIONS1061x876x1936 mm (41.7''x34.4''x76.2'') WEIGHT WITHOUT OIL2230 Kg (4916 Lbs)
