Hydraulic bending machine C50ES
steel tubeNC

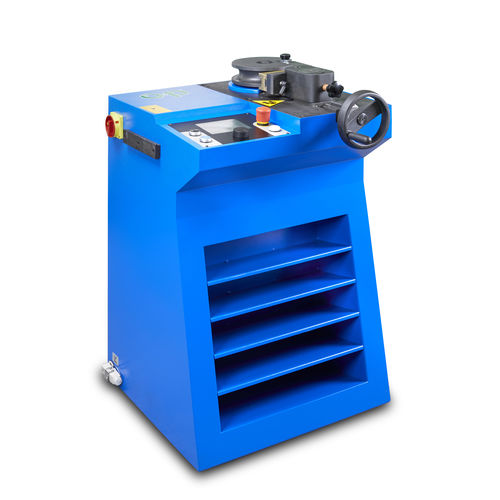

Hydraulic bending machine - C50ES - OP Srl - steel tube / NC
Hydraulic bending machine - C50ES - OP Srl - steel tube / NC
Hydraulic bending machine - C50ES - OP Srl - steel tube / NC - image - 2
Add to favorites
Compare this product

Go to the OP Srl website for more information

Characteristics

Operation
hydraulic
Product handled
steel tube
Control
NC
Bending capacity

Min.: 5 mm
(0.2 in)

Max.: 50 mm
(1.97 in)

Description

C50 ES bending machine is ideal for bending 5 to 50 mm rigid stainless steel (AISI 316 TI) and carbon steel (ST 37.4) tubes. The electronic control ensures enhanced performance and makes the new C50 ES particularly suitable for volume production. The machine can be equipped with a tube driving system. GENERAL TUBE BENDING DIAMETER:5-50 mm (1/4''-1'' 1/2) BENDING DIAMETER (AISI 316 TI):38x4 - 42x3 mm (1'' 1/4x0.15'' - 1'' 1/2x0.12'') BENDING DIAM. ST :37.438x5 -42x3 mm (1'' 1/4x0.20'' - 1'' 1/2x0.12'') MAX BENDING ANGLE:180° 90 BENDING TIME:6 Sec. BENDING ANGLE TOLERANCE:± 1° DIMENSIONS L x W x H:620x740x950 mm (24.4''x29.1''x37.4'') WEIGHT:175 Kg (385 Lbs) STANDARD VOLTAGE:400V 50 HZ 3PH MOTOR POWER:1.5 Kw (2 Hp) PEDAL:OPTIONAL SPECIAL VOLTAGE:OPTIONAL

VIDEO
