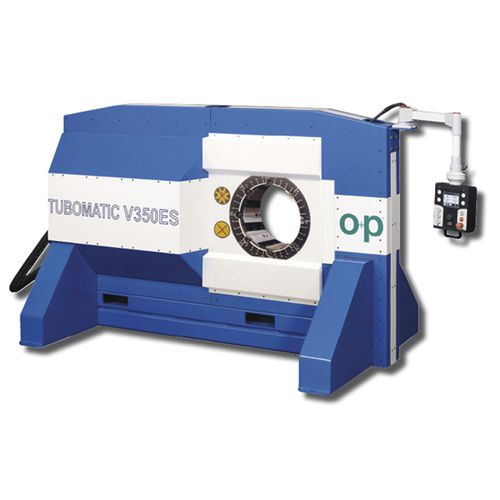

Hose crimping machine TUBOMATIC V350ES
automatichydraulicPLC-controlled

Hose crimping machine - TUBOMATIC V350ES - OP Srl - automatic / hydraulic / PLC-controlled
Hose crimping machine - TUBOMATIC V350ES - OP Srl - automatic / hydraulic / PLC-controlled
Add to favorites
Compare this product


Characteristics

Product handled
for hoses
Operational mode
automatic
Drive type
hydraulic
Other characteristics
PLC-controlled
Crimping force

9,806 kN

Crimping capacity

350 mm
(13.8 in)

Voltage

Max.: 420 V

Min.: 375 V

Description

With a crimping force of 1000 ton, the crimper Tubomatic V350 ES is able to crimp industrial hoses up to 12'' with big flanges, but it can also be used for crimping insulators and rebar couplers that require a high crimping force. MAIN FEATURES: - ES4 Siemens PLC control with 7'' color touch-screen display; - self lubricating moving components; - silent pump; - particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings; - back limit switch; - protractor for fittings orientation; - separate hydraulic power pack included. 6 SPIRALS 2 PIECES 3'' INDUSTRIAL HOSE 12'' MAX DIAM. 350 mm* (13.7'') DIE OPENING Ø + 155 mm (Ø + 6.1'') MAX. OPENING WITHOUT DIES 468 mm* (18.4'') STANDARD VOLTAGE 375V-420V 50HZ 3PH CLOSING SPEED 7 mm/sec (0.2''/sec) CRIMPING SPEED 1 mm/sec (0.03''/sec) OPENING SPEED 40 mm/sec (1.5''/sec) MOTOR POWER 15 Kw (20 Hp) A=27,80 DIMENSIONS LxWxH 1650x1750x2935 mm (64.9''x68.8''x115.5'') WEIGHT WITHOUT OIL 10000 Kg (22046 Lbs) OIL 300 lt HYDRAULIC POWER PACK DIMENSIONS LxWxH 1245x755x1370 mm (49''x29.7''x53.9'') HYDRAULIC POWER PACK WEIGHT 463 Kg (1021 Lbs)
