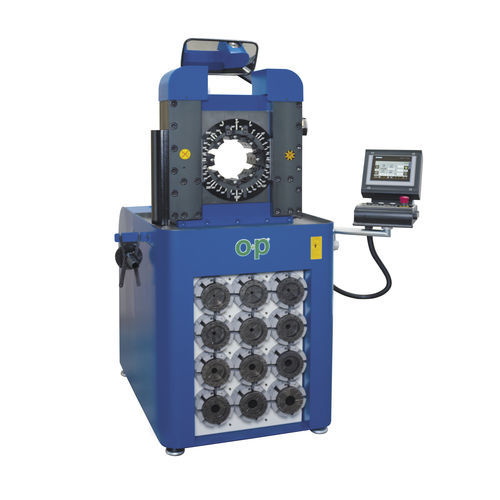

Hose crimping machine TUBOMATIC V159ES

semi-automatichydraulicPLC-controlled

The volume crimper Tubomatic V159 ES is ideal for crimping hydraulic hoses up to 2" 1/2 six spirals and industrial hose up to 6" (with special dies). MAIN FEATURES: - ES4 Siemens PLC control with 7'' colour touch-screen display; - self lubricating moving components; - silent pump; - "6 o'clock" die in fixed position for a greater stability of the hose during the crimping phase; - particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings; - back limit switch; - protractor for fittings orientation; - hydraulic power pack included. 6 SPIRALS 2 PIECES2''1/2 INDUSTRIAL HOSE6'' MAX DIAM.159 mm (6.2'') CRIMPING/HOUR2400 CLOSING SPEED22 mm/sec (0.8''/sec) CRIMPING SPEED2,3 mm/sec (0.9''/sec) OPENING SPEED25 mm/sec (0.9''/sec) DIE OPENINGØ + 70 mm (Ø + 2.7'') MAX. OPENING WITHOUT DIES225 mm (8.8'') STANDARD VOLTAGE375V-420V 50HZ 3PH MOTOR POWER5,5 Kw (7.5 Hp) A=10,64 DIMENSIONS1000x1160x1616 mm (39.3''x45.6''x63.6'') WEIGHT WITHOUT OIL1540 Kg (3395 Lbs)
