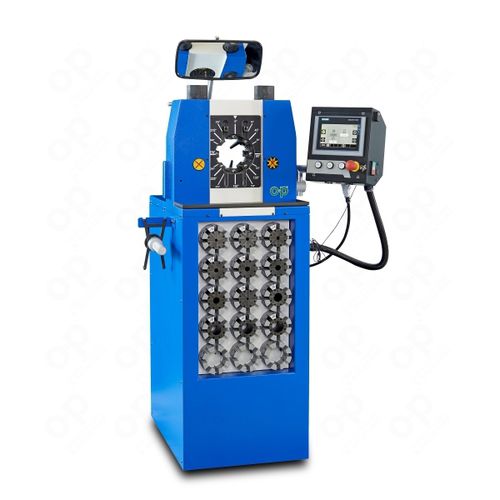

Hose crimping machine TUBOMATIC V59ES
semi-automatichydraulicPLC-controlled

Hose crimping machine - TUBOMATIC V59ES - OP Srl - semi-automatic / hydraulic / PLC-controlled
Hose crimping machine - TUBOMATIC V59ES - OP Srl - semi-automatic / hydraulic / PLC-controlled

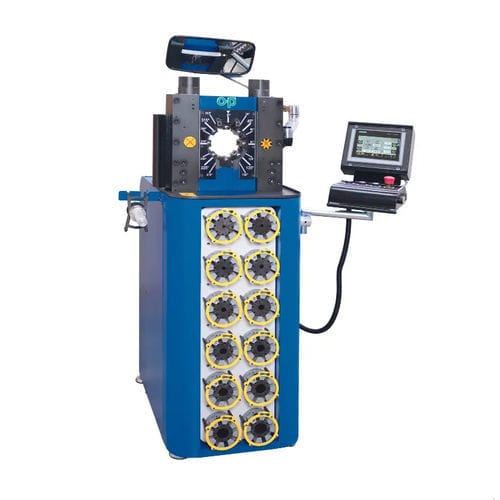

Hose crimping machine - TUBOMATIC V59ES - OP Srl - semi-automatic / hydraulic / PLC-controlled - image - 2
Add to favorites
Compare this product


Characteristics

Product handled
for hoses
Operational mode
semi-automatic
Drive type
hydraulic
Other characteristics
PLC-controlled
Crimping force

1,373 kN

Crimping capacity

67 mm
(2.6 in)

Description

The volume crimper Tubomatic V59 ES is ideal for crimping hydraulic hoses up to 1" six spirals and 1"1/4 four spirals. MAIN FEATURES: - ES4 Siemens PLC control with 7'' colour touch-screen display; - self lubricating moving components; - silent pump; - "6 o'clock" die in fixed position for a greater stability of the hose during the crimping phase; - particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings; - back limit switch; - protractor for fittings orientation; - hydraulic power pack included. 6 SPIRALS 2 PIECES1'' 4 SP 2 PIECES1''1/4 2 BRAIDS 2 PIECES WITH SPECIAL DIES1''1/2 MAX DIAM.67 mm* (2.6'') CRIMPING/HOUR3900 CLOSING SPEED11,6 mm/sec (0.4''/sec) CRIMPING SPEED5,5 mm/sec (0.2''/sec) OPENING SPEED11,6 mm/sec (0.4''/sec) DIE OPENINGØ + 50 mm (Ø + 1.9'') MAX. OPENING WITHOUT DIES117 mm (4.6'') STANDARD VOLTAGE375V-420V 50HZ 3PH MOTOR POWER5,5 Kw (7.5 Hp) A=10,64 DIMENSIONS660x720x1490 mm (25.9''x28.3''x58.6'') WEIGHT WITHOUT OIL544 Kg (1199 Lbs)
