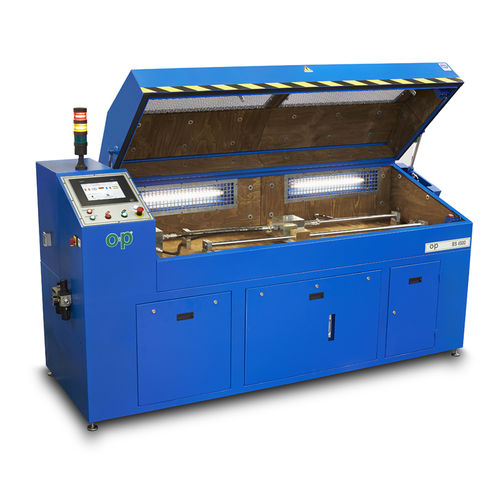

Multi-parameter test stand BC4500ESautomatichosehydraulic
Add to favorites
Compare this product
Characteristics
- Test type
- multi-parameter
- Operating mode
- automatic
- Test material
- hose
- Technology
- hydraulic, pneumatic
Description
Bench for destructive tests, up to 4500 bars, provided with pneumo-hydraulic pump and graphic printer with automatic PLC control.
IMPULSE PRESSURE:4500 bar (65250 psi)
MIN. STARTING PRESSURE:100 bar (1450 psi)
PRESSURE CONTROL:automatic
TEST:automatic
TYPE OF DRIVE:pneumatic intensifier
TEST LIQUID:OIL
N. MANIFOLDS:2
N. MANIFOLD CONNECTIONS:2 x M16 x 1,5 mm
LIQUID FILLING:semi-automatic
FILLING FLOW:25 Lt/min
PRESSURE DISCHARGE:automatic
DOOR ELECTRIC SAFETY DEVICE:automatic
PRESSURE GAUGE:digital
STANDARD CHAMBER DIMENSIONS:2200 x 900 mm (86.6''x35.4'')
BENCH DIMENSIONS:2470 x 950 x 1300 mm (97.2''x37.4''x51.1'')
AIR CONSUMPTION:1500 Lt/min
TANK:100 Lt
STANDARD VOLTAGE:400V 50Hz 3PH
WEIGHT WITHOUT OIL:681 KG (1500 Lbs)
