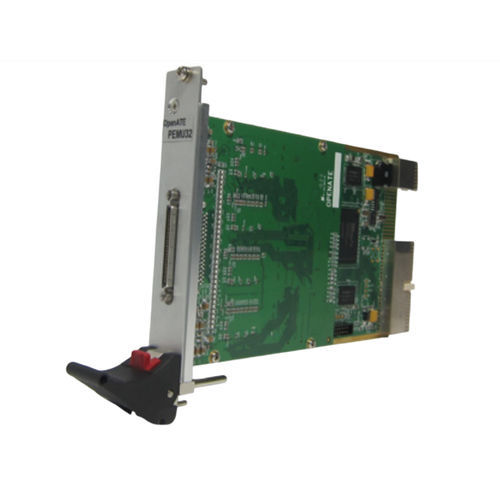

Digital I/O card PEMU32

32-I/OPXI3U

The PEMU32 represents a new level of MULTIFUNCTION for PXI-based instrumentation. Based on the proven architecture of the PE32, the PEMU32 offers high voltage PMU/DPS and pin electronics in a compact, 3U PXI form factor. Each card can function as a stand-alone digital subsystem or if required, multiple cards can be interconnected, supporting up to 256 bi-directional pins (8 boards). The PEMU32 also supports deep pattern memory by offering 32 M of on-board vector memory with dynamic per pin direction control and with test rates up to 10 MHz. The PEMU32 supports -1 ~ +10 VOH VOL VIH VIL per channel and 32 PMU/4 DPS per board. The PEMU32 offers 4 timing sets, 2 driver TG Edges, 2 strobe TG Edges. 1 Format set with six drive data formats are supported: RTZ (Return To Zero), RTO (Return To One), NRZ (Non Return To Zero) NRO (Non Return To One), SBC (Surround By Complement) ,NF(no format) which can providing flexibility to create a variety of bus cycles and waveforms to test board and box level products.8 PMU can be ganged to high current DPS. 100MHz 32 bit counter for frequency measurement. On-Board Memory The PEMU32 offers 32 M of vector memory per channel. Programmable pattern cycle times up to 232 or infinite. There are pattern symbols including 0, 1, L, H, X, Z, J, Q. 32 M failure log or capture for each channel. Compatibility All OpenATE Interfaces PXI cards comply with the PXI Specification 2.0 (issued Aug. 2000) Software The PEMU32 is supplied with API and Pattern Editor. Pattern Editor is a software tool that edits test patterns. Application • Automatic Test Equipment(ATE) • Consumer Digital Functional Test • Digital Pattern Generation/Capture
