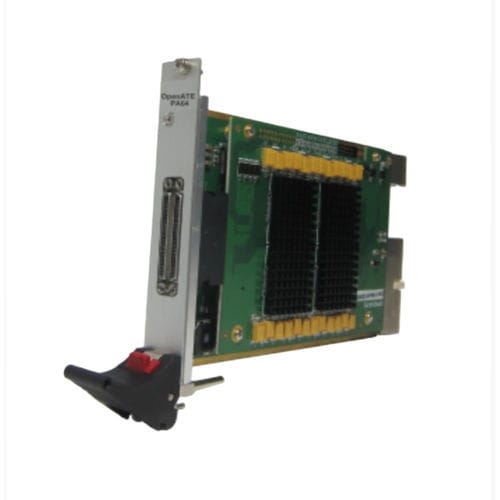

Digital I/O card PA64IX

64-I/OPXIbox

The PA64IX represents a new level of performance and capabilities for PXI-based digital instrumentation. Each card can function as a stand-alone digital subsystem or if required, multiple cards can be interconnected, supporting up to 1024 bi-directional pins (16 boards). The PA64IX also supports deep pattern memory by offering 32 M of on-board vector memory with static per pin direction control and with test rates up to 33 MHz. With new 32M capture memory, PA64IX can capture 64 channels data log. Features The PA64IX supports -0.5 ~ +3.5 VTH per channel ,VIH/VIL per channel. The PA64IX offers 1, 2 driver TG Edges, 1 strobe TG Edges, and four drive data formats are supported: RTZ (Return To Zero), RTO (Return To One), NRZ (Non Return To Zero), SBC (Surround By Complement) which can providing flexibility to create a variety of bus cycles and waveforms to test board and box level products Compatibility All OpenATE Interfaces PXI cards comply with the PXI Specification 2.0 (issued Aug. 2000) Software The PA64 is supplied with API and Pattern Editor. Pattern Editor is a software tool that edits test patterns. Application • Digital Pattern Capture • Digital Pattern Generation • Hybrid and Digital IC Testing
