Integrating sphere standard IS6 Series
Add to favorites
Compare this product
Characteristics
- Type
- integrating sphere
Description

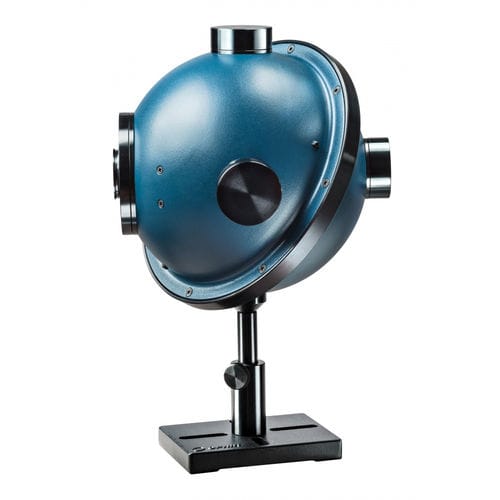

The IS6-C is a 6” integrating sphere (5.3” inside) for use with collimated (C) beams. It has no detectors, where the detection configuration for the IS6-C is done by the user. It can also be used as a uniform light source.
Specification
Aperture: Ø25mm
Spectral Range: 200-2200nm
Power Range: N.A.
Dimensions: Ø154 (mm)
Max Pulse Energy: N.A.
Max Average Power Density: 1kW/cm²
Response Time: N.A.
Max Average Power: N.A.
Max Beam Divergence: ±15 deg
Sensitivity to Beam Size: ±1%
Sensitivity to Beam Divergence: N.A.
Compliance: CE, China RoHS
