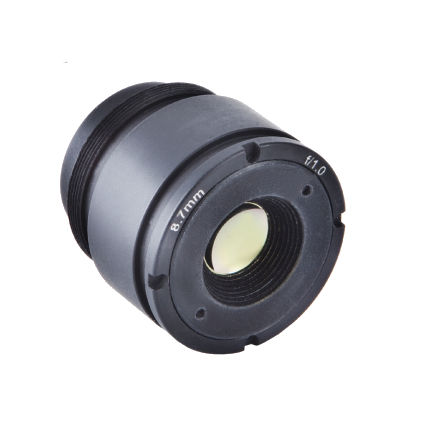

Fixed-focus camera objective 680310
Add to favorites
Compare this product
Characteristics
- Type
- fixed-focus
- Focal length
8.7 mm
(0.34 in)
Description
SupIR 8.7mm f/1.2,
Fixed Athermalized
Optical
Focal Length: 8.7mm
F/#: 1.2
Average Transmission (8-12um): 87%
Back Focal Length: 7.39mm in air
Mechanical
Focus Mechanism: Fixed
Depth of Field: 6m to infinity
Focus Range: 0.2m to infinity
Weight: 28.5gr
Max. Dimensions: Ø26mm x 24.5mm
Environmental
Operating Temperature: -40°C to +80°C
Storage Temperature: -54°C to +85°C
Sealing: IP 67 front element only
Configurations
680310-001: High Durability
680310-002: Hard Carbo
