Energy meter power meter Laserstar

opticalUSBanalog

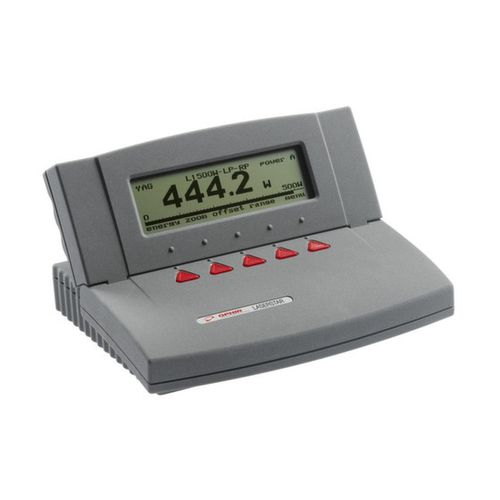

Laser Power Meter & Energy Meter Description: The LaserStar is a microprocessor based laser power meter which is menu driven with window based software. Two models are available: single and dual channel. Compatible with all standard Ophir Thermopile, Pyroelectric, Photodiode and RP sensors. Large LCD display. Backlighting & rechargeable battery. Screen graphics and statistics (std div. min, max). Analog output. Built in RS232 interface. Works with Ophir's StarCom32 application. Log every data point at >1500Hz with pyroelectric sensors. Non-volatile data storage up to 59,400 points. Laser tuning screen and power log. Audio sound for laser tuning and low battery. LabVIEW software included. Ratio and difference measurement Specification Thermal Sensors: Yes Photodiode Sensors: Yes Pyroelectric Sensors: Yes BeamTrack Sensors: No Statistics: Yes Analog Out: 1V Communication: RS232, GPIB Trigger Input & Output: No Ethernet: N/A RS232: 30Hz GPIB: 1500Hz USB: N/A Bluetooth: N/A On-Board Data Storage: 59.4K Automation Interface: No Labview VI's: Yes Compliance: CE, China RoHS
