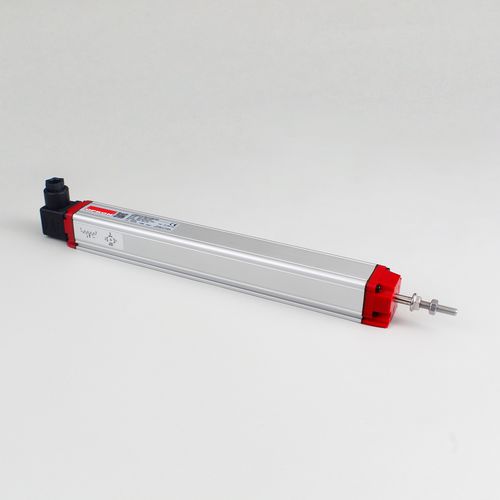

Linear position sensor RTLpotentiometeranalogdigital
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Technology
- potentiometer
- Output signal
- analog, digital, with potentiometric output
- Measurement object
- metal
- Protection class
- IP65
- Applications
- industrial
- Other characteristics
- absolute, high-precision, rectangular, economical
- Measuring range
Min.: 30 mm
(1.18 in)Max.: 1,000 mm
(39.37 in)- Linearity
Min.: 0 %
Max.: 0.1 %
- Supply voltage
Min.: 22 V
Max.: 26 V
24 V
- Ambient temperature
Min.: -30 °C
(-22 °F)Max.: 90 °C
(194 °F)
Description
Long mechanical life 100 million movements
Excellent repeatability <0.01 mm
Infinite resolution
5 kOhm: 30 ... 600mm, 10 kOhm: 650 ... 1000 mm
