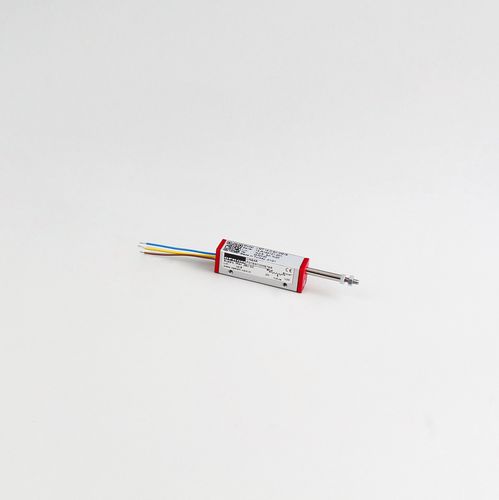

Linear position sensor LMTISspring-loaded potentiometermechanicalanalog
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Technology
- spring-loaded potentiometer, mechanical
- Output signal
- analog, with potentiometric output
- Measurement object
- metal
- Protection class
- IP54
- Applications
- industrial
- Other characteristics
- compact, absolute, high-precision, high-resolution, economical
- Measuring range
Min.: 10 mm
(0.39 in)Max.: 25 mm
(0.98 in)- Supply voltage
Min.: 22 V
Max.: 26 V
24 V
- Ambient temperature
Min.: -30 °C
(-22 °F)Max.: 90 °C
(194 °F)
Description
Ultra slim body
Excellent repeatability <0.01 mm
Infinite resolution
2 kOhm
