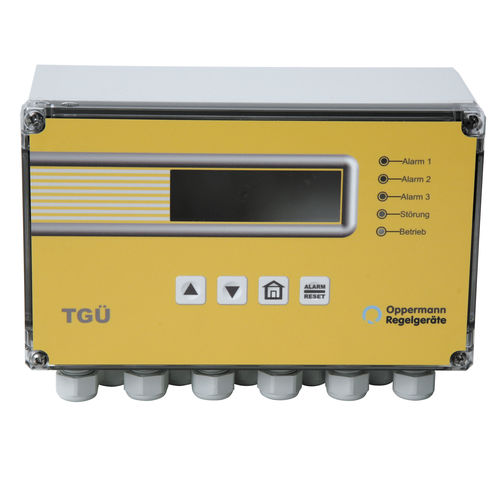

LCD display gas detection control unit TGÜ-KM 3.6

wall-mounttoxicCO

Monitoring device for car parks TGÜ-KM 3.6 System Description: The TGÜ-KM3.6 is a bus compatible sensor and controlsystem and is used to monitor air for toxic carbon monoxide / nitrogen dioxide or propane / methane concentrations in underground garages or similarly confined spaces where motor vehicles with combustion engines are operated. The integrated timer can be used to implement cyclical ventilation independent of hazardous substance concentrations. This can be supplemented with an optional humidity monitor to avoid condensation problems. • Gas control center with bus technology • Up to 24 sensor locations for CO, NO2, LPG, CH4 and humidity • Menu-guided button operation • 4 variably adjustable alarm thresholds • Average time values can be created for alarms • Password-protected configuration level • Large LCD plain text display • 6 potential-free alarm relays • Bus interface to the central building management system (Modbus RTU) • LED system status indication • Integrated timer for cyclical ventilation • Integrated humidity control (Option)
