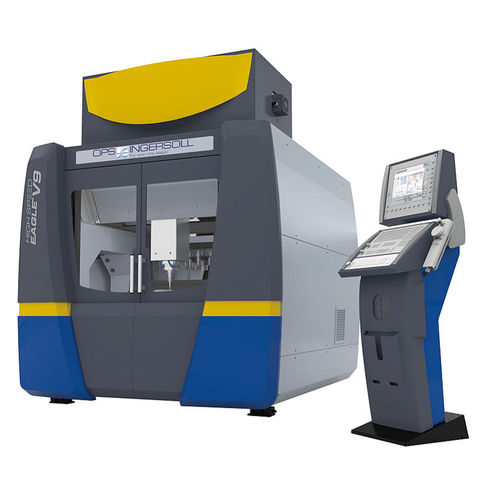

3/5-axis CNC machining center EAGLE V9verticalgantryHSK A-63
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3/5-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Spindle mount
- HSK A-63, HSK-E50, HSK-E40
- Number of tool stations
- 48 tools
- Associated functions
- cutting
- Applications
- for large workpieces
- Other characteristics
- high-speed, compact, rigid
- X travel
800 mm
(31.5 in)- Y travel
600 mm
(23.62 in)- Z travel
500 mm
(19.69 in)- Power
15 kW, 17 kW, 22 kW
(20.39 hp, 23.11 hp, 29.91 hp)- Table load capacity
2,000 kg
(4,409 lb)- Overall length
2,177 mm
(85.7 in)- Overall width
3,064 mm
(120.6 in)- Overall height
2,850 mm
(112.2 in)
Description
The top level of the OPS-INGERSOLL high speed cutting machines: Despite its compact design the HIGH SPEED EAGLE V9 offers maximum working space inside together with optimal dynamics and rigidity. Our innovation is based on the internationally patented 3/5-axis concept and can also be variably automated for large workpieces.
Catalogs
HighSpeedEagle V9
6 Pages
