Jaw crusher CKT-CK series
stationaryprimaryhigh-capacity

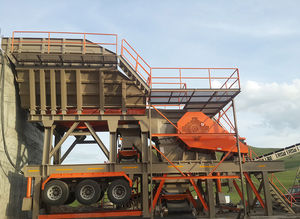

Jaw crusher - CKT-CK series - OPT Makine - stationary / primary / high-capacity

Jaw crusher - CKT-CK series - OPT Makine - stationary / primary / high-capacity - image - 2

Jaw crusher - CKT-CK series - OPT Makine - stationary / primary / high-capacity - image - 3

Jaw crusher - CKT-CK series - OPT Makine - stationary / primary / high-capacity - image - 4

Add to favorites

Compare this product

Characteristics

Technology

jaw

Mobility

stationary

Other characteristics

primary, high-capacity, secondary, for mineral material

Capacity

Max.: 500 t/h
(306.2 lb/s)

Min.: 20 t/h
(12.2 lb/s)

Motor power

Max.: 160 kW
(217.54 hp)

Min.: 30 kW
(40.79 hp)

Opening height

Max.: 1,000 mm
(39.4 in)

Min.: 200 mm
(7.9 in)

Opening lenght

Max.: 1,400 mm
(55.1 in)

Min.: 610 mm
(24 in)

Description

JAW CRUSHERS The high performance, reliability, durability and user-friendly adjustment mechanisms of our jaw crushers due to their high flywheel speeds, jaw grabbing angles, special geometries of their pits with safety plates. Jaw Crushers reduces fed rock side by compression, i.e. mechanical pressure is applied using the crusher’s two jaws. Jaw crushers are one of the most commonly preferred crushers due to their ability to crush all kinds of materials of any hardness, as well as their low-cost operation and easy maintenance USED TO CRUSHER ROCKS IN EVERY HARDNESS Jaw crushers are used for soft to very hard materials. Different jaw types are sued for different materials to increase the efficiency. ADVANTAGES - SIDE LINERS -special cast side liners provide resistance against abrasion - JAWS -cast steel jaw plates. Different profiles are available for different rock types - SHAFT & BEARINGS -provide maximum strength - BODY -made with high quality weld
