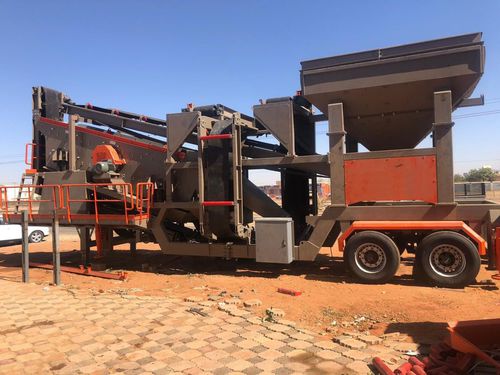

Tertiary crushing and screening plant CKT-PDK series
impactmobileprimary

Tertiary crushing and screening plant - CKT-PDK series - OPT Makine - impact / mobile / primary

Tertiary crushing and screening plant - CKT-PDK series - OPT Makine - impact / mobile / primary - image - 2

Tertiary crushing and screening plant - CKT-PDK series - OPT Makine - impact / mobile / primary - image - 3

Tertiary crushing and screening plant - CKT-PDK series - OPT Makine - impact / mobile / primary - image - 4

Tertiary crushing and screening plant - CKT-PDK series - OPT Makine - impact / mobile / primary - image - 5

Add to favorites

Compare this product

Characteristics

Technology

impact

Mobility

mobile

Other characteristics

primary, secondary, high-capacity, rubber-tired, sand production, crawler, fine, compact, for mineral material, horizontal-shaft, vertical-axis, tertiary

Capacity

Min.: 150 t/h
(91.9 lb/s)

Max.: 950 t/h
(581.8 lb/s)

Motor power

160 kW, 200 kW, 250 kW, 315 kW, 400 kW
(217.54 hp, 271.92 hp, 339.91 hp, 428.28 hp, 543.85 hp)

Description

Tertiary impact crushers are used for soft and medium-hard materials’ crushing, with close grain distribution and cubical products. Tertiary impact crushers are preferred because of they are being an excellent solution in the production of fine materials for concrete and asphalt applications. MAIN FEATURES - - Bolted, easily removable steel construction - - Easy maintenance and repair - - Piston hydraulic system, electric hydraulic unit - - Two layers of anti-corrosion acrylic - - Spare parts and service books - - User and maintenance books TECHNICIAL SPECIFICATIONS - - 4 wear-resistant special cast pallets - - Machine side lining thickness 30 mm 16-18 Manganese alloy casting - - A1 quality ST-37 sheet - - Heavy-duty bearing
