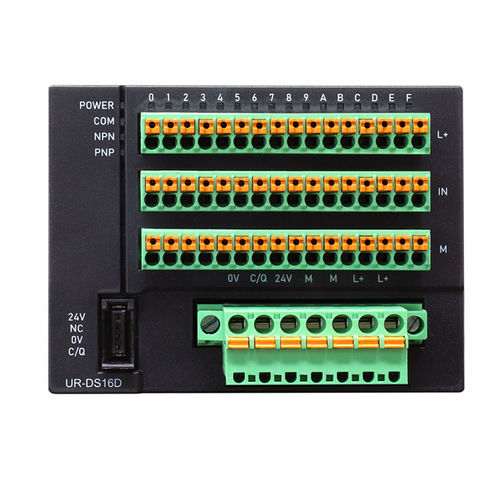

Analog I/O module UR-DS Series

digitalIO-Link16-I/O

Unit that converts 1 CH of IO-Link ports in IO-Link Master to 16-point of digital I/O Expandable I/O up to 256 (16 x 16) points by connecting to IO-Link Master UR Series. Digital input is Sink(NPN) / Source(PNP), all terminals are switched at once. Digital output is Sink(NPN) / Source(PNP), each pin individually switchable (our original). Unit that converts 1 CH of IO-Link ports in IO-Link Master to 4 CH of analogl I/O Analog inputs are voltage (0 to 10 VDC, -10 to 10 VDC, 0 to 5 VDC, 1 to 5 VDC) and current (0 to 20 mA, 4 to 20 mA), switchable for each channel individually. Analog outputs are voltage (0 to 10 VDC, -10 to 10 VDC, 0 to 5 VDC) and current (0 to 20 mA), switchable for each channel individually. System configuaration example of IO-Link Master UR Series and IO-Link Hub UR-DS Series The IO-Link Hub is connected with a 1:1 IO-Link connection to the upper-level IO-Link Master UR Series. Converting IO-Link Master Port 1 CH to Digital, Analog I/O enables the connection of existing sensors and actuators with wire-saving.
