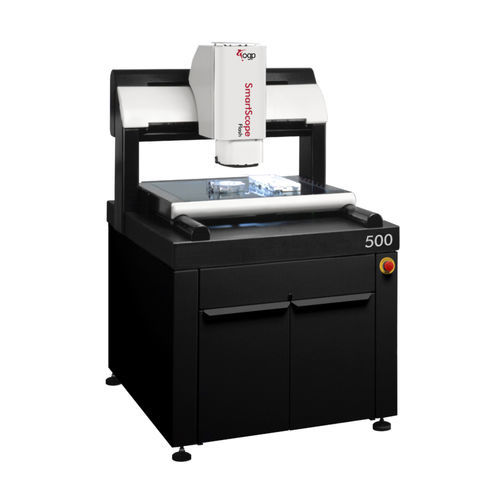

Bridge coordinate measuring machine SmartScope Flash 500

multi-sensor

3D Multisensor Measurement System The SmartScope® Flash™ 500 is the perfect large capacity 3D multisensor measurement system. It offers all the great Flash features and performance in a large travel bridge-design system. Parts move on a precision DC motor-driven Y-axis stage while the optics assembly travels in the X-axis across a stable bridge cross member. Measurement stability –Optics mounted on a rigid bridge support structure for metrological integrity Precision optics – High quality AccuCentric® zoom lens automatically compensates magnification for each zoom position Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light illuminate parts from all angles Multisensor versatility – Optional touch probe, scanning probe, laser, and micro-probe sensors Optics Standard AccuCentric® auto-compensating zoom with up to 25 calibrated positions, 1.0x lens Optional Focus Grid Projector: LED Source Laser Adapter: Allows for field retrofit of TTL Laser. Includes Laser Pointer Replacement Lenses: 2.5x, 5.0x Laser Lenses: 2.0x (Included with TTL Laser), 5.0x Lens Attachments for 1.0x Lens: 0.5x, 0.75x, 1.5x, 2.0x Illumination Standard Substage LED profile, coaxial LED surface, SmartRing LED ring light (white) Optional Red, green, or blue SmartRing light, Flexible SmartRing light for 0.5x lens attachment
