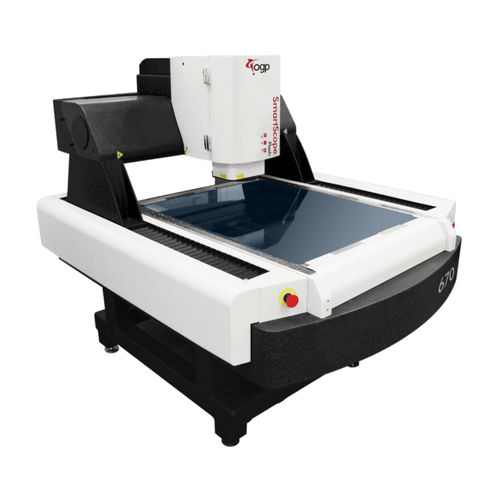

Gantry coordinate measuring machine SmartScope Flash 670

bridgemulti-sensor

SmartScope® Flash™ 670 is an extra-large capacity 3D multisensor measurement system with a large XYZ measuring range. It is a Floor model system with solid granite base and moving bridge, providing a highly rigid structure for accurate positioning and repeatability. Stationary part – Optics mounted on a moving bridge, so part remains stationary Built-in measurement stability –A granite base and bridge provide a rigid, orthogonal structure for measurement stability Precision optics – High quality AccuCentric® zoom lens automatically compensates magnification for each zoom position Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light illuminate parts from all angles Multisensor versatility – Optional touch probe, scanning probe, laser, and micro-probe sensors Standard 650 x 660 x 200 Optional Extended Z axis, 300 or 400 Optics Standard AccuCentric® auto-compensating zoom with up to 25 calibrated positions, 1.0x lens Optional Focus Grid Projector: LED Source Laser Adapter: Allows for field retrofit of TTL Laser. Includes Laser Pointer Replacement Lenses: 2.5x, 5.0x Laser Lenses: 2.0x (Included with TTL Laser), 5.0x Lens Attachments for 1.0x Lens: 0.5x, 0.75x, 1.5x, 2.0x Illumination Standard Substage LED profile, coaxial LED surface, SmartRing LED ring light (white) Optional Red, green, or blue SmartRing light, Flexible SmartRing light for 0.5x lens attachment
