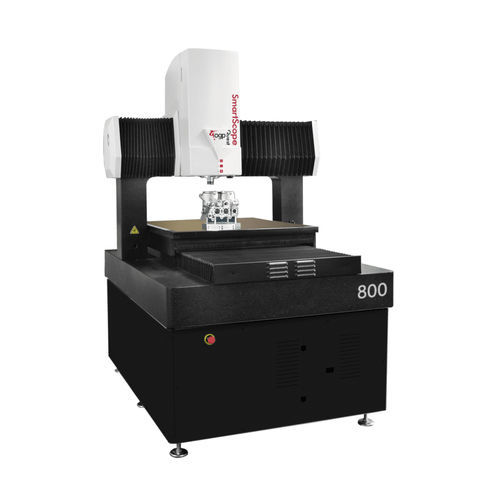

Bridge coordinate measuring machine SmartScope® Quest™ 800

for large partsmulti-sensoroptical

SmartScope® Quest™ 800 is an extremely accurate floor model coordinate measurement system incorporating scanning probe, touch probe, micro-probes, and the patented TeleStar® Plus TTL laser for versatility and accuracy. The Quest 800, with its extensive 790 x 815 x 300 mm XYZ measurement volume (and available 400 mm Z-travel), is designed to measure very large parts. A solid granite bridge platform rests on a sturdy steel support structure and the bridge design limits measured part motion to the Y axis, offering measurement stability. Quest 800 offers: Accurate video metrology – TeleStar® telecentric 10:1 zoom optics for the highest level of optical performance Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light illuminate parts from all angles multisensor dimensional measurement Multisensor versatility – Optional touch probe, off-axis DRS™ laser, on-axis TeleStar TTL interferometric laser, micro-probes, SP25 continuous contact scanning probe, PH10 motorized probe head, and 4th and 5th axis rotary indexers Optics Standard 10:1 AccuCentric® TeleStar® auto-compensating, telecentric zoom, motorized; mag range 0.8x – 8x, with up to 10 calibrated positions; 1.0x lens Optional Focus Grid Projector: LED source Replacement Lenses: 0.45x, 0.5x, 2.0x, 4.0x Laser Lenses: 0.45x, 0.5x, 2.0x, 4.0x Illumination Patented servo-driven high performance monochromatic substage profile, LED coaxial TTL surface, 8 sector/6 ring SmartRing™ LED
