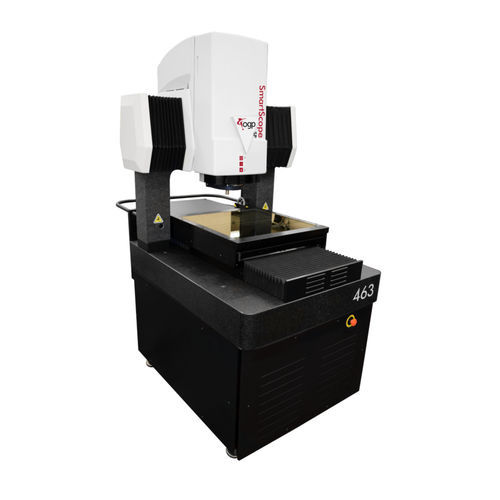

Bridge coordinate measuring machine SmartScope® SP 463

workshopmulti-sensoroptical

SmartScope® SP systems are designed for optimum scanning probe performance. Starting with a rigid base structure, the system mechanics are designed to optimize dynamic data acquisition critical to scanning probe performance. Most performance specifications for SP models are according to ISO 10360 standards. The SmartScope SP 463 offers: A rugged, floor model system of proven design to handle larger, heavier parts in a workshop environment Fixed bridge design separates the primary axis motions, so they are completely independent, with no influence on each other Rigidity and stiffness give this transport superb volumetric accuracy Optics Standard OGP® SP zoom optics with AccuCentric® autocompensation, one standard front lens and 5.5x optical zoom offer up to 60:1 digital/optical magnification range with maximum 90 mm WD Optional 2x, 5x lens Illumination Standard All monochromatic LED: substage profile, coaxial surface, SmartRing™ ring light Optional LED focus grid illuminator
