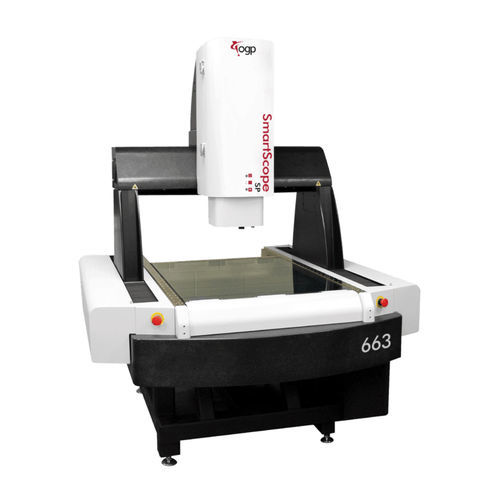

Optical measuring machine SmartScope® SP 663

for large partsmulti-sensorcompact

SmartScope® SP systems are designed for optimum scanning probe performance. Starting with a rigid base structure, the system mechanics are designed to optimize dynamic data acquisition critical to scanning probe performance. Most performance specifications for SP models are according to ISO 10360 standards. SmartScope SP 663 is a moving bridge system designed for larger, heavier parts. During measurement the part remains stationary while the optics and sensors are moved around it. SmartScope SP 663 also offers: A large measuring volume and high payload capacity in compact footprint A moving bridge design, allowing heavy parts to be loaded by a conveyor or overhead crane, if needed Granite base and granite bridge with heavy-duty cast uprights ensure thermal stability and vibration isolation even under adverse conditions Optics Standard OGP® SP zoom optics with AccuCentric® autocompensation, one standard front lens and 5.5x optical zoom offer up to 60:1 digital/optical magnification range with maximum 90 mm WD. Optional 2x, 5x lens
