Vertical profile projector c-vision™ Floor

large screendigitalfloor-standing

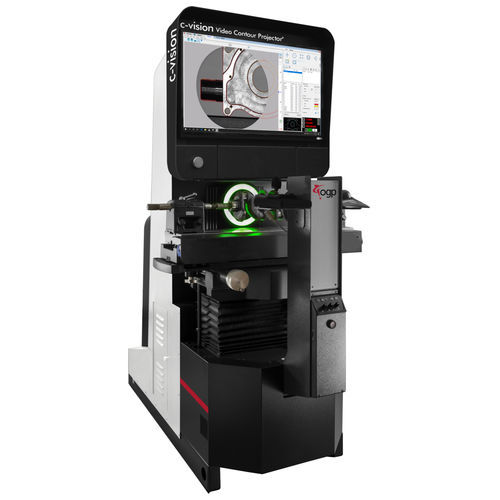

c-vision™ Floor Model Video Contour Projector® – the ultimate shop floor measuring system. Its high payload capacity puts advanced automatic video measurement to work for large, heavy parts. Precision optics and Measure-X™ Compare electronic overlay charts make comparative inspections easy. c-vision Floor Model offers: Accurate Image with exceptionally low distortion over 4-inch field of view viewing area – Telecentric optics optical system with advanced digital imaging technology, dual magnification with motorized turret and up to 4 inches large field of view and 3 inch large depth of field Shop hardened and convenient – Tough construction, high load capacity, and large viewing screen for shop floor use. Includes a large travel 15” x 9” motorized XY table motion with precision linear scales and manual fine adjusters as well as integrated controller with keyboard mounted on a convenient fold-down tray Create and run measurement routines, perform “walk-up and measure” tasks as well as fitting the measurement data to 2D CAD for profile and GD&T analysis – Measure-X Compare virtual chart gage software displays both standard and custom overlay charts
