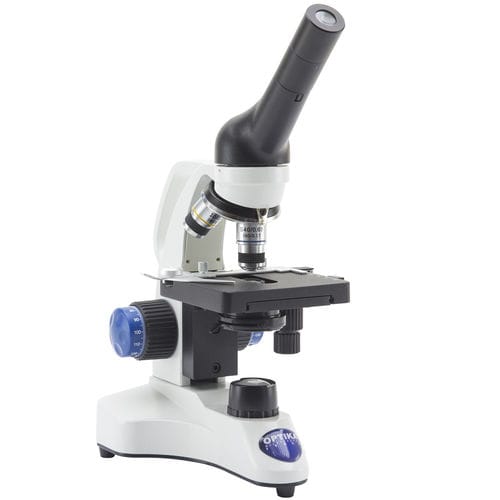

Optical microscope B-20CReducationaluprightmonocular
Add to favorites
Compare this product
Characteristics
- Type
- optical
- Technical applications
- educational
- Ergonomics
- upright
- Microscope head
- monocular
- Quality of the objectives
- achromatic
- Observation technique
- bright field
- Light source
- LED illumination
- Magnification
4 unit, 10 unit, 40 unit
- Weight
1.9 kg
(4.2 lb)- Length
182 mm
(7.2 in)- Width
140 mm
(5.5 in)- Height
340 mm
(13.4 in)
Description
Head: Monocular, 45° inclined; 360° rotating.
Eyepiece: WF10x/18 mm, secured by screw.
Nosepiece: Triple ball bearings revolving nosepiece, reversed.
Objectives:
• Achromatic 4x/0.10
• Achromatic 10x/0.25
• Achromatic 40x/0.65.
All with anti-fungus treatment.
Specimen stage: Double layer, 105×95 mm, moving range 50×15 mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: N.A. 0.65 with iris diaphragm.
Illumination: 0.5 W LED, with brightness control, rechargeable batteries (not included).
Color temperature: 6,300 K. 100-240Vac/5Vdc external power supply.
