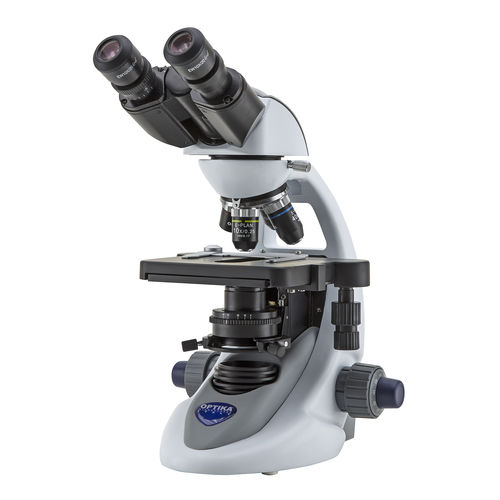

Optical microscope B-292

laboratoryeducationalupright

Binocular head with N-PLAN objectives, rackless stage and exclusive X-LED3 for unmatchable performance, powerful and uniform illumination. Observation mode: Brightfield. Head: Binocular, 30° inclined and 360° rotating. Interpupillary distance 48-75 mm. Dioptric adjustement: On both eyepieces. Eyepieces: WF10x/20 mm, high eye-point and secured by screw. Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings. Objectives: • N-PLAN 4x/0.10 • N-PLAN 10x/0.25 • N-PLAN 40x/0.65 • N-PLAN 100x/1.25 (Oil/Water) • All with anti-fungus treatment. • Specimen stage: Double layer rackless mechanical sliding stage, 150×139 mm, 75×33 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm. • Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob. • Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable. • Illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6,300 K) and light intensity control. Multi-plug 100-240Vac/6Vdc external power supply.
