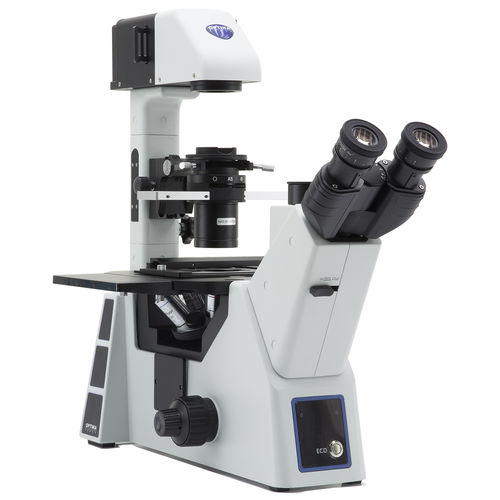

Optical microscope IM-5

for researchinvertedtrinocular

Head: Trinocular (fixed 50/50), 45° inclined. Dioptric adjustment: Both eyepieces. Eyepieces: WF10x/24 mm, high eyepoint and with retractable rubber cups. Nosepiece: Quintuple ball bearings revolving nosepiece, reversed. Objectives: Selectable according to customer’s preferences. All with anti-fungus treatment. Specimen stage: Fixed stage, 215×250 mm and attachable mechanical stage, 290×250 mm, 120×80 mm X-Y movement range. Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob. Condenser: Abbe N.A. 0.50, removable, with iris diaphragm and slider for phase contrast. Transmitted illumination (Full Koehler): X-LED8 with white 8 W LED and brightness control. Color temperature: 6,300 K. Multi-plug 100-240Vac/12Vdc external power supply. Objectives To be chosen among: Plan-Achromatic LWD for brightfield: – IOS LWD W-PLAN 4x/0.13, W.D. 10.4 mm (M-782) – IOS LWD W-PLAN 40x/0.60, W.D. 3.1 mm (M-773) – IOS LWD W-PLAN 60x/0.70, W.D. 1.7 mm (M-786) Plan-Achromatic LWD for phase contrast: – IOS LWD W-PLAN PH 4x/0.13, W.D. 10.4 mm (M-782.1) – IOS LWD W-PLAN PH 10x/0.25, W.D. 7.3 mm (M-783N) – IOS LWD W-PLAN PH 20x/0.40, W.D. 6.8 mm (M-784N) – IOS LWD W-PLAN PH 40x/0.65, W.D. 3 mm (M-785) Semi-Apochromatic LWD for brightfield: – IOS LWD U-PLAN F 4x/0.13, W.D. 18.52 mm (M-800) – IOS LWD U-PLAN F 10x/0.30, W.D. 7.11 mm (M-801) – IOS LWD U-PLAN F 20x/0.45, W.D. 5.91 mm (M-802) – IOS LWD U-PLAN F 40x/0.65, W.D. 1.61 mm (M-803) – IOS LWD U-PLAN F 60x/0.75, W.D. 1.04 mm (M-804)
