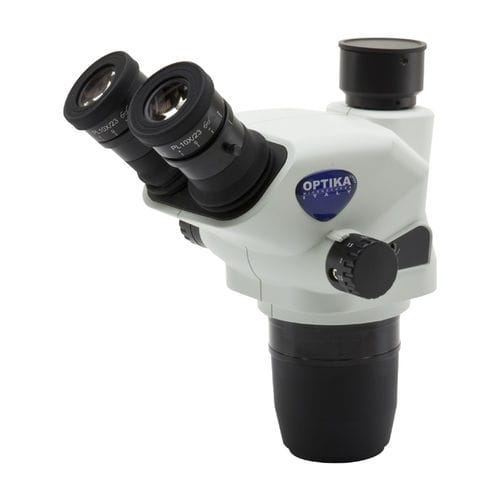

Optical stereo microscope SZO-T

inspectiontrinocularachromatic

SZO Heads – Addressed For Extreme Reliability & Repeatability. Ensuring the sharpest vision, high productivity, repetitive analysis, 3D Greenough view for high resoluted images & large field depth, 23 mm field number and extra large working distance (up 110 mm), 6.72:1 zoom ratio – zoom magnification from 6.7x to 45x, simultaneous eyepiece & camera observation and Multi-position click-stop – no need to move eyes from eyepieces. SZO Heads – Addressed For Extreme Reliability & Repeatability • Ensuring the sharpest vision, high productivity, repetitive analysis • 3D Greenough view for high resoluted images & large field depth • 23 mm field number and large working distance (up 110 mm) • 6.72:1 zoom ratio – zoom magnification from 6.7x to 45x • Simultaneous eyepiece & camera observation (on SZO-T) • Multi-position click-stop – no need to move eyes from eyepieces Head: Trinocular (split ratio: 70/30), 360° rotating on all stands and 45° inclined. Interpupillary distance: Adjustable between 51 and 75 mm. Dioptric adjustment: On both eyepieces. Eyepieces: WF10x/23 mm, high eyepoint, secured by screw and with retractable rubber cups. Objective: Parfocal achromatic zoom 0.67x…4.5x (zoom factor 6.72:1) with click-stop. Working distance: 110 mm.
