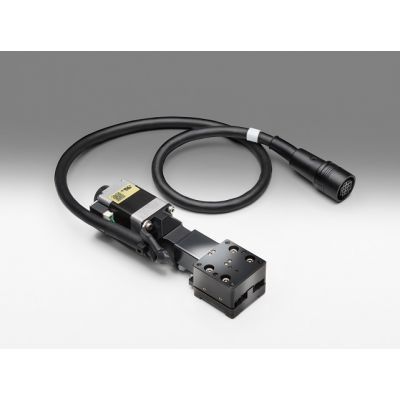

1-axis positioning table OSCM25-10X series

XYZ-axisrotary

Small table size stage with stepping motor. The table size is 25x25mm. Ideal for production and experimental applications require significantly smaller size. ◦X-axis, Z-axis, Rotation and Goniometer available. ◦High precision stepping motor is used to achieve precision positioning. Name:Small Motorized Single Stage Weight:0.2500kgs Guide • OptoSigma’s standard controller and cables compatible. • Please select D15RP-CA series or MINI-CA-SG series depending on the controller. Attention:- Travel:10mm Load Capacity:19.6N (2.0kg) Item Returns:This item can be returned Stage Size:25×25mm Feed Screw:Ball screw diameter φ3mm, 1mm lead Positioning Slide:Crossed roller Stage Material:Steel Finish:Black chrome Resolution (Full):2μm/pulse Resolution (Half):1μm/pulse Minimum Incremental Motion (reference):0.2μm MAX Speed:10mm/sec Positioning Accuracy:15μm Positional Repeatability:3μm Moment Stiffness / Pitch:10″/N･cm Moment Stiffness / Yaw:10″/N･cm Moment Stiffness / Roll:5″/N･cm Lost Motion:5μm Backlash:1μm Parallelism:30μm Running Parallelism:20μm Pitch:100″ Yaw:60″ Sensor Part Number:Micro photo sensor : GP1S092HCPIF(Sharp Corporation) Limit Sensor:Equipped (NORMAL CLOSE) Origin Sensor:Equipped (NORMAL OPEN) Proximity Origin Sensor:None
