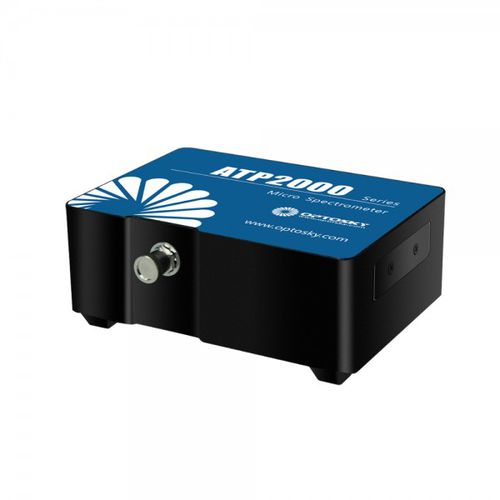

CCD spectrometer ATP2000P

CMOSmeasurementoptical

Optosky ATP2000P has a low-noise, high-performance, and cost-effective. The sensor used 2048 pixel CCD responding from 200-1100 nm. ATP2000P is ideal for fast-detect because of high A/D converter frequency and the high-speed data transmission. In the memory chip is available for some solid programmed algorithms that can improve the performance, such as wavelength calibration coefficient, linearity coefficient. It transfers spectrum to PC through USB 2.0 or RS232 interface. ATP2000P operates with a single +5VDC supply supplied from USB or duo-pin interface. ATP2000P has free SDK for customers self-developed, Optosky support C++, C#, Labview and Linux system SDK, which is very convenient for OEM customers to design solutions. spectral region: 200-1000 nm Spectral resolution: 0.2-5 nm Optical configuration: crossed Czerny-Turner Linear low noise CMOS detector with 2048 pixel Integration times: 0.1ms-256s Supply voltage: DC 5V (USB Power) 16 bit, 2MHz A/D Converter Interface: USB2.0 (High speed) 20-pin connector for interfacing to external products LED spectrophotometer Fluorescence Biochemical analyzer Transmittance measurement Reflectance measurement
