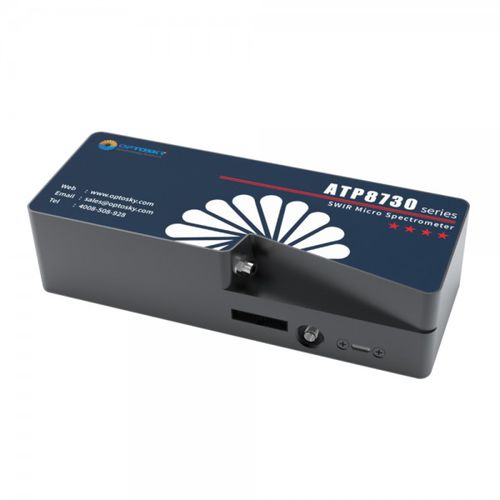

Optical spectrometer ATP8730

infraredCCDmeasurement

ATP8730 is an ultra-high-resolution, ultra-high-speed, short-wave infrared series micro-optic spectrometer developed by Optosky, with a maximum working range of 900-1700nm (the actual range can be customized). It adopts a 1024-pixel InGaAs array detector, and it adopts optimization. The optical path design has an amazing resolution of 30pm. At the same time, Optosky specially customized the ultra-low noise CCD signal-related dual sampling processing circuit for ATP8730, with a minimum quantization noise of fewer than 25 counts, which greatly reduces the noise of the sensor and obtains an excellent signal-to-noise ratio (about two times higher than similar competitors), and The measurement reliability of ATP8730 is improved, and the measurement results do not change with ambient temperature. ATP8730 can receive SMA905 fiber input light or free space light, and output the measured spectral data through the USB2.0/USB3.0 or UART port. 1024-pixel InGaAs detector; Ultra-high frame rate: 30 KHz; Maximum spectral range: 900-1700nm (customized); Minimum spectral resolution: 30 pm (related to the width of the incident slit); Integration time: 10μs - 256s; Power supply: DC 5V@<1A; Power interface: USB power supply; ADC depth: 16 bits; ADC sampling rate: 10 MHz; Optical input interface: SM905 optical fiber ; interface or free space input; Data output interface: USB3.0 and UART; 20-pin extended interface; Off-SMA trigger signal; Monitoring of the laser wavelength; Optical communication wavelength monitoring; High-speed ion luminescence monitoring; Food sorting, moisture, protein, fat, and fiber detection of crops; Paper sorting;
