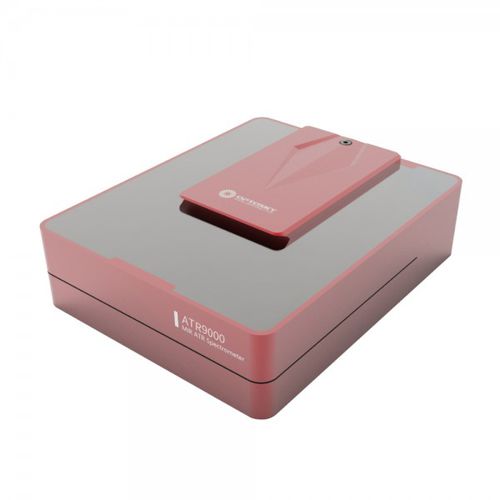

Infrared spectrometer ATR9000

CCDprocessmeasurement

ATR9000（Old Model: ATP8200）is developed by Optosky（Attenuated Total Reflection, ATR）, built-in MEMS Infrared Source, it employs Pyroelectric linear array sensor, in the ZnSe high performance material window measure ATR spectrum. Optosky exclusively designs Ultra-low noise CCD signal processing circuit, results in reducing sensor noise, improving improving SNR( 2 times higher SNR than competitors). Higher measuring reliability ensures results can not change with ambient temperature. ATR9000 fit to measure samples in powder, fluid, easy-to-operate, it takes just few steps to complete measurement. Spectral Range：2.5-5 μm（4000-2000 cm-1）or 5.5-11μm（1818-909 cm-1） MIR（Attenuated Total Reflection, ATR）spectrometer Detector：Linear Pyroelectric linear array sensor(ZnSe) ATR window material：ZnSe Detector pixels：256pixels Ultra-low noise CCD signal processing circuit Built-in MEMS electrical Infared Source Measure Time：30s（Typical） 16 bit, 500 KHz ADC Data output port: USB2.0 Power Supply：5V DC, <2A Food safety Dye analysis Material identification Anti-counterfeiting authentication The Environmental Monitoring of stack emissions, such as SO2,CO,CO2 etc. Defense & Security detection of TNT,Acetone, TATP, VX, Sarin etc. Life Sciences of NH3, SF6, ethylene etc. Industrial Process Monitoring for gas, liquid, or solid Biomedical, such as protein analysis, blood analysis, urine analysis Petrochemistry pharmaceutical industry Oil Material Analysis Drugs, Chemicals, Combustible & Explosives Analysis
