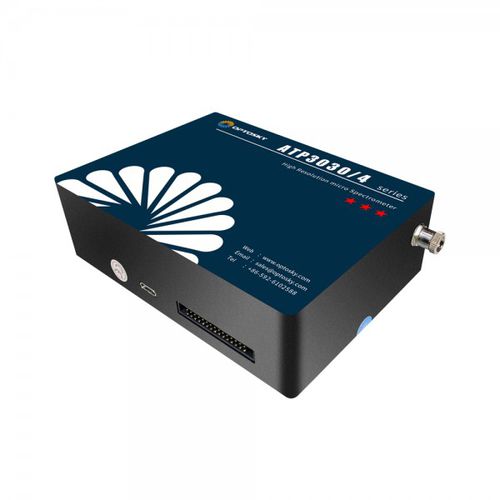

Raman spectrometer ATP3030

ultravioletmonitoringfast

ATP3030 is a ultra-high resolution micro spectrometer developed by Optosky. The highest resolution can reach 0.05nm, which is suitable for all kinds of high-resolution applications. At the same time, it has the characteristics of high reliability, ultra-high speed, low cost, high cost performance and so on. It can be used in various environmental applications such as online testing. ATP3030 is perfect for fast detection attribute to its high A/D converter frequency and the high speed data transmission. In ATP3030 memory chip, some algorithms to improve the performance are programed solidly, such as wavelength calibration coefficients, linearity coefficients. ATP3030 operates with a single +5V DC supply supplied from USB or UART. ATP3030 has free SDK for customers self-developed, Optosky support C++, C#, Labview and Linux system SDK, which is very convenient for OEM customers to design solutions. High resolution, low stray light Max range: 180-1150nm Resolution: 0.05-2nm Light path: M-shape Detector: 2048 pixel CMOS Integration time: 0.1ms - 60s Power: DC 5V±10% or USB power ADC: 16 bit Sample rate: 2 MHz Output: USB 2.0 or UART USB connector: USB Type-C; Plasma luminescence detection; LIBS Raman spectrum detection; Wavelength monitoring, laser, led, etc Water quality analyzer Ultraviolet flue gas analyzer Led sorter and color detection; Micro and fast spectrophotometer; Spectrum analysis, radiation spectrophotometry and spectrophotometry
