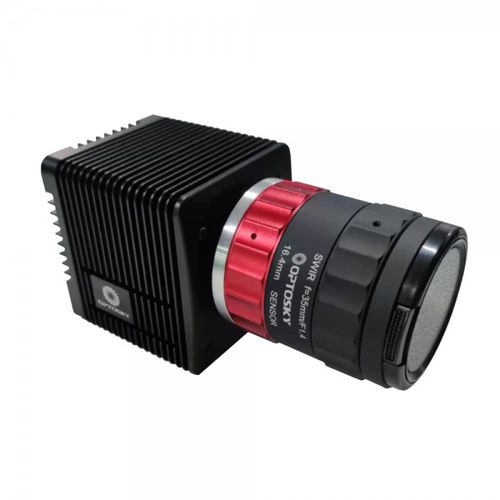

Industrial camera ATH1500-17

laboratoryhyperspectralsafety

ATH1500-17 is a brand-new short-wave infrared hyperspectral imaging system with breakthrough characteristics. It is a small and lightweight short-wave infrared hyperspectral imager with a working wavelength range of 1000-1700nm, which is especially suitable for drones. In addition to its small size and lightweight, ATH1500-17 has the characteristics of high spatial resolution, high-frequency spectral resolution, and wide imaging range. It consists of two parts: imaging cameras and a hyperspectral imager. ATH1500-17 adopts a high-performance refrigeration CCD imaging device of 640 x 512 pixels, with clear imaging, few noise points, and good linearity. It integrates an original high compression ratio image compression algorithm internally, which greatly improves the endurance time to more than 3 hours, fully meeting the needs of drones. With its stable temperature optical system, the ATH1500-17 provides excellent stability and sensitivity required for the application of short-wave infrared chemical imaging and meets the stringent requirements of laboratory, field, and industrial applications, taking it a useful assistant for pharmaceutical quality assurance, food safety, and agricultural analysis applications. Waveband range: 1000-1700nm High spectral resolution: 10 nm Maximum field of view angle: 31.7° (depending on the lens) Hyperspectral Imaging Cameras Data format compatibility with ENVI Compact size: 122mm x 58mm x 65mm Lightweight: 380 g Non- mechanical scanning and high reliability
