Compact imaging system ATH6500

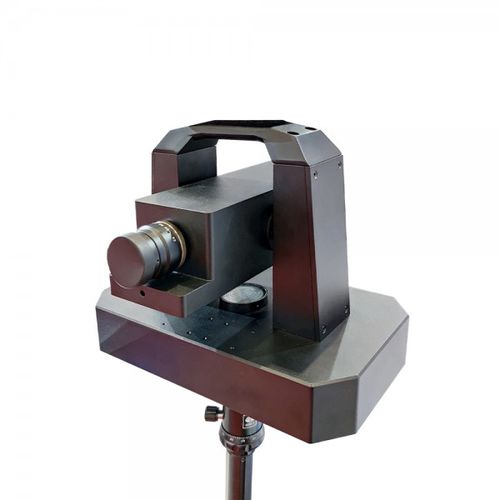

ATH6500 is designed spectral imaging system suitable to field operation with a function of auto-scan. It composes of hyperspectral camera ATH1500 and tripod. The core hyperspectral camera is a complete self-developed, and it employs low cost split light system with a compact size, CMOS image sensor, high frame rate, high-performance-to-price ratio, USB power supply no need extra power, customized high precision scan mirror can sweep target forming image; It employs built-in power supply module, external wire connect is simple can improve integrated and portability. ATH6500 combines hyperspectral imaging technology with high-definition photography technology, and the collected data has both high spectral resolution and high spatial Spectral Range: 400-5300nm (Customized) Max. Spatial Pixels: 2048x2048 (Different by model) Max. Spectral Channels: 1088 (Different by model) Superior imaging performance; The data format is compatible with ENVI; Built-in auto-scan device, compact size; Weight: 6.5kg (Different by model) A variety of stray light elimination design, high imaging quality; High-definition visible light camera, capable of image fusion; High responsibility Monitor Agriculture: plant diseases and insect pest, disaster, categories ID etc. Forestry: Tree categories identification, Phytomass, nutrient elements, forest health etc. Water Environment: Water quality parameters, water waste spatial distribution and migration analysis Soil Pollution: heavy metal waste Minerals: Mineral mapping, ingredients explore, metallogenic prognosis etc. City geological substances classification and identification
