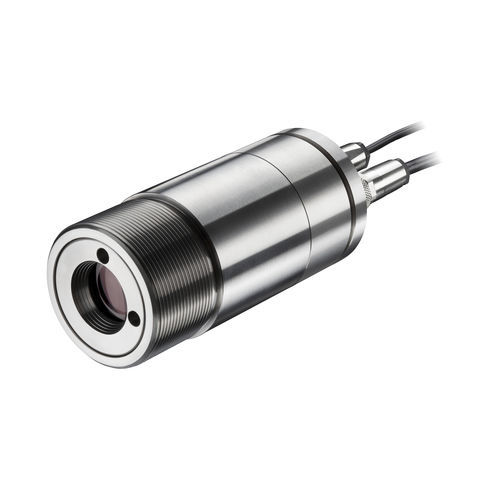

The video pyrometer optris CSvideo 2M, with its integrated video sighting allows for an additional visor assistance. Combined with the innovative and patented crosshair laser, it offers a reliable and precise measuring field adjustment in hard-to-reach areas and in cases of measuring objects being so hot the laser visor is not visible anymore.
Measurement Specifications
• Optical resolution (90% energy):
150:1 (2ML)
300:1 (2MH)
• Repeatability (at Tamb = 23 ± 5°C): ± (0,1% of reading + 1°C)
• Temperature resolution: 0.1 K
• Emissivity / Gain (adjustable via sensor or software): 0.100 – 1.100
• IR window correction (adjustable via software): 0.100 – 1.000
• Signal processing (parameter adjustable via software):
peak hold, valley hold, average, extended hold function with threshold and hysteresis
General Specifications
• Environmental rating: IP 65 (NEMA-4) front mountable at vacuum processes (up to 10-3 mbar)
• Ambient temperature: -20°C … 70°C (50°C with laser ON)
• Storage temperature: -40°C … 85°C
• Relative humidity: 10 – 95%, non condensing
• Vibration:IEC 60068-2-6 (sinus shaped), IEC 60068-2-64 (broadband noise)
• Shock: IEC 60068-2-27 (25G and 50G)
• Weight: 600 g
Electrical Specifications
• Output / analog: 4-20 mA
• Loop resistance: max. 1000 Ω1)
• Output / alarm: 0-30 V/500 mA (open collector)
• Output/ digital: USB 2.0
• Video Sighting: digital (USB 2.0), 640 x 480 px, FOV 3.1° x 2.4°
• Cable length (analog + alarm): 3 m, 8 m, 15 m
• Cable length (USB): 5 m (incl.), 10 m, 20 m
• Power supply: 5-28 V DC
• Current draw:
45 mA at 5 V
20 mA at 12 V
12 mA at 24 V
