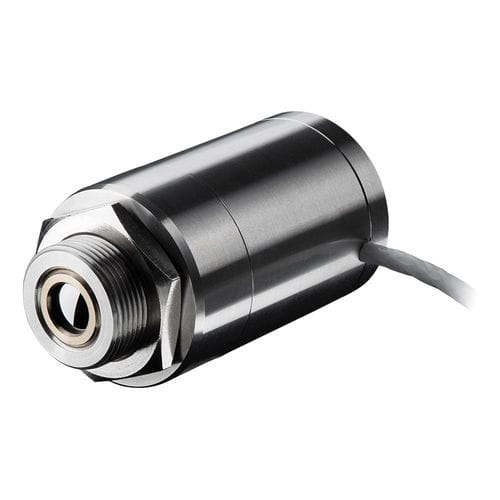

Pyrometer with LED display CT P3

°C15:1USB

Due to its special spectral range of 3.43 µm, the pyrometer optris CT P3 is perfectly suited for precise temperature measurements of thin plastic filmslike PE, PP and PS. It measures temperatures precisely from 50 °C up to 400 °C and its measuring head offers a temperature resistance of up to 75°C without additional cooling. Its separate electronics box is acclaimed for its easily accessible programming buttons and its illuminated LCD display. Measurement specifications • Repeatability (at ambient temperature 23 ± 5°C): 1.5°C • Temperature resolution (NETD): 0.1 K • Emissivity / Gain (adjustable via programming keys or software): 0.100 – 1.100 • Transmissivity / Gain (adjustable via programming keys or software): 0.100 – 1.100 • Signal processing (parameter adjustable via programming keys or software, respectively): peak hold, valley hold, average, extended hold function with threshold and hysteresis General specifications • Environmental rating: IP 65 (NEMA-4) • Ambient temperature: sensing head: 0 °C … 75 °C electronics: 0 °C … 75 °C • Storage temperature: sensing head: -40 °C … 85 °C electronics: -40 °C … 85 °C • Relative humidity: 10 – 95 %, non-condensing • Vibration:IEC 60068-2-6 (sinus shaped), IEC 60068-2-64 (broadband noise) • Shock: IEC 60068-2-27 (25G and 50G) • Weight: sensing head with massive housing 200 g electronics 420 g Electrical specifications • Output / analog: 0/4 – 20 mA, 0 – 5/10 V, thermocouple J, K, alarm • Output / alarm: 24 V / 50 mA (open collector) • Optional: relay: 2 x 60 V DC/42 V ACeff; 0.4 A; optically isolated • Output / digital (optional): USB, RS232, RS485, Modbus RTU, Profibus DP, Ethernet
