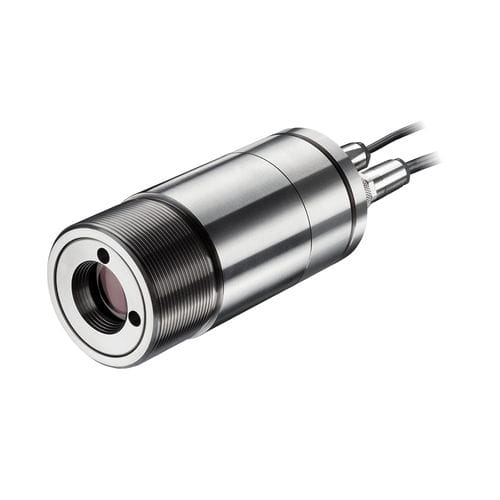

Pyrometer with video module CSvideo 3M

without display°C60:1

The infrared video thermometer optris CSvideo 3M is perfectly suited for low-temperature measurement of metals and composite materials starting from 50 °C. Parallel use of the video module and the laser sight allow for an easy and exact measuring field marking even if the measuring object is located in hard-to-access areas. Measurement specifications • Optical resolution (90 % energy):60:1 (3ML) 100:1 (3MH) • Repeatability (at Tamb = 23 ± 5 °C): ± (0.1 % of reading + 1 °C) • Temperature resolution (digital): 0.1 K • Emissivity / Gain (adjustable via software): 0.100 – 1.100 • Transmissivity / Gain (adjustable via software): 0.100 – 1.000 • Signal processing (parameter adjustable via programming keys or software, respectively): peak hold, valley hold, average, extended hold function with threshold and hysteresis General specifications • Environmental rating: IP 65 (NEMA-4) front mountable at vacuum processes (up to 10 -3 mbar) • Ambient temperature: sensing head: -20 °C … 70 °C (50 °C with laser ON) • Storage temperature: -40 °C … 85 °C • Relative humidity: 10 – 95 %, non condensing • Vibration:IEC 60068-2-6 (sinus shaped), IEC 60068-2-64 (broadband noise) • Shock: IEC 60068-2-27 (25G and 50G) • Weight: 600 g Electrical specifications • Outputs / analog: 0/4 – 20 mA • Loop resistance: Max. 1000 Ω4) • Output / alarm: 0-30 V / 500 mA (open collector) • Output / digital: USB 2.0, Ethernet (via optional USB server) • Video Sighting5): Digital (USB 2.0) 640 x 480 px, FOV 3.1° x 2.4° • Cable length (analog and alarm): 3 m, 5 m, 15 m • Cable length (USB): 5 m (incl.), 10 m, 20 m, 100 m (over Ethernet)
