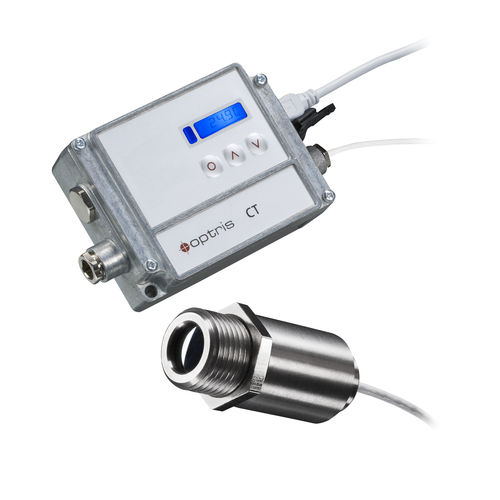

Digital pyrometer CT 4M

°CK10:1

The quick exposure time of only 90 μs makes the high speed IR thermometer CT 4M the perfect sensor for measuring fast processes. Due to its short measuring wavelength and a temperature range from 0°C to 500 °C, the pyrometer optris CT 4M, is suitable for measurements of metals, metal oxides, ceramics or materials with unknown or changing emissivity. The electronics box of the measuring device allows a flexible terminal device through selectable analog outputs as well as various optional digital interfaces. Measurement specifications • Optical resolution (90 % energy): 10:1 • Repeatability (at ambient temperature 23 ± 5 °C): ± (0.1 % of reading + 1 °C) • NETD2): 120 mK • Temperature coefficient3): ±0.05 K/ K or ±0.03 %/ K • Exposure time: 90 μs (90 %) • Emissivity / Gain (adjustable via programming keys or software): 0.100 – 1.100 • Transmissivity / Gain (adjustable via programming keys or software): 0.100 – 1.100 • Signal processing (parameter adjustable via programming keys or software, respectively): Peak hold, valley hold, peak picker, average; extended hold function with threshold and hysteresis • Software/App: optris CompactPlus Connect / IRmobile General specifications • Environmental rating: IP 65 (NEMA-4) • Ambient temperature: sensing head: 0 °C … 70 °C electronics: 0 °C … 70 °C • Storage temperature: sensing head: – 40 °C … 85 °C electronics: – 40 °C … 85 °C • Relative humidity: 10 – 95%, non-condensing • Vibration:IEC 60068-2-6 (sinus shaped), IEC 60068-2-64 (broadband noise) • Shock: IEC 60068-2-27 (25G and 50G) • Weight: sensing head 40 g electronics 420 g
