Digital pyrometer CS LT
°C15:1USB

Digital pyrometer - CS LT  - Optris GmbH & Co. KG - °C / 15:1 / USB
Digital pyrometer - CS LT  - Optris GmbH & Co. KG - °C / 15:1 / USB
Digital pyrometer - CS LT  - Optris GmbH & Co. KG - °C / 15:1 / USB - image - 2
Digital pyrometer - CS LT  - Optris GmbH & Co. KG - °C / 15:1 / USB - image - 3
Digital pyrometer - CS LT  - Optris GmbH & Co. KG - °C / 15:1 / USB - image - 4
Digital pyrometer - CS LT  - Optris GmbH & Co. KG - °C / 15:1 / USB - image - 5
Digital pyrometer - CS LT  - Optris GmbH & Co. KG - °C / 15:1 / USB - image - 6
Add to favorites
Compare this product


Characteristics

Display
digital
Units of measurement
°C
Optical resolution
15:1
Communication
USB
Configuration
hand-held, screw-in
Other characteristics
optical
Temperature

Min.: -50 °C
(-58 °F)

Max.: 1,030 °C
(1,886 °F)

Precision

1.5 %

Spectral range

Min.: 8 µm

Max.: 14 µm

Response time

14 ms

Description

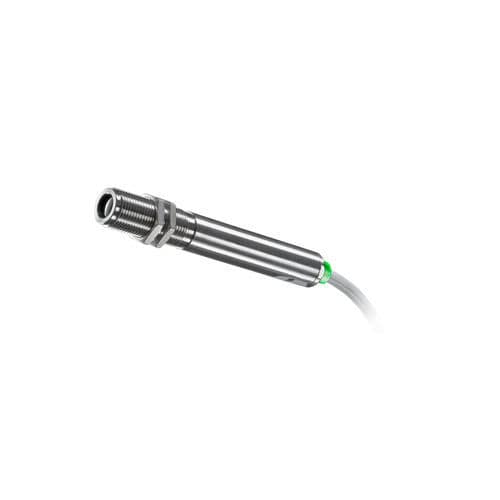

The infrared pyrometer optris CS LT is perfectly suited for temperature measurement in small and narrow environments. The robust measuring heads have been developed for use in temperature ranges from -40°C to 1,030°C and can be employed in ambient temperatures of up to 80°C without additional cooling. The inexpensive IR pyrometers are perfectly suited for OEM solutions. They also work ideally for multiple employments of infrared measurement points. Measurement specifications • Optical resolution (90% energy): 15:1 • CF-lens (optional): 0.8 mm @ 10 mm (0.03 in @ 0.4 in) • Repeatability (at ambient temperature 23 ± 5°C ): ± 0.75 % or ± 0.75 °C 1) • Temperature coefficient: ± 0.05 K/K oder ± 0.05 % / K3) • NETD: 50 mK2) • Emissivity / Gain (adjustable via 0-10 V DC input or software): 0.100 – 1.100 • Transmissivity (adjustable via software): 0.100 – 1.100 • Signal processing (parameter adjustable via software): peak hold, valley hold, average, extended hold function with threshold and hysteresis General specifications • Environmental rating: IP 63 • Ambient temperature: -20 °C … 80 °C • Storage temperature: -40 °C … 85°C • Relative humidity: 10 – 95%, non condensing • Shock: IEC 60068-2-27 (25G and 50G) • Vibration:IEC 60068-2-6 (sinus shaped), IEC 60068-2-64 (broadband noise) • Weight: 58 g (2.0 oz)

VIDEO
