Pyrometer with smartphone application connectivity CSmicro LT LTH

LED°C2:1

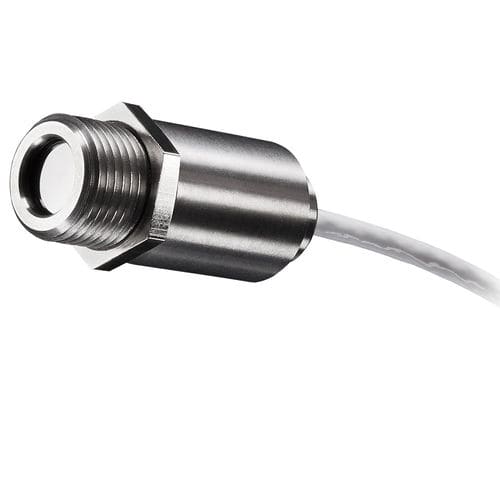

The pyrometer optris CSmicro LT LTH is equipped with an innovative, miniaturized stainless steel measuring head, optimally suited for installation in limited spaces. Its small size and its temperature resistance up to 180°C make the mechanic integration of the measuring head especially cost-efficient. The intelligent LED display works optionally as alarm signal, target support, self-diagnosis or temperature-code display. The placement of electronic components within the cable allows for a high temperature resistance of the measuring head. New: The CSmicro series can now be operated via the new IR mobile App (Android). The App enables to monitor and analyze infrared temperature measurements on a connected smartphone or tablet. Measurement Specifications • Optical resolution (90% energy): 22:1 (LT22H) 15:1 (LT15 / LT15H) 2:1 (LT02) • CF-lens (optional): 2.3 mm @ 50 mm (22:1) 3.4 mm @ 50 mm (15:1) 2.5 mm @ 23 mm (2:1 with CF optics) • Repeatability: ± 0.5% or ± 0.5°C1)2) • Temperature coefficient: ± 0.05 K/K or ± 0.05 %/K3) • NETD: 50 mK4) • Emissivity / Gain (adjustable via 0-5 V DC input or software): 0.100 – 1.100 • Transmissivity (adjustable via software): 0.100 – 1.100 • Signal processing (parameter adjustable via software): peak hold, valley hold, average, extended hold function with threshold and hysteresis • Dimensions of electronics: length: 35 mm, diameter: 12 mm • Software: • optris Compact Connect (Windows) • IR mobile (Android) General Specifications • Environmental rating: IP 65 (NEMA-4) • Ambient temperature: –20 … 120 °C (LT sensing head) –20 … 180 °C (LTH sensing head) –20 … 80 °C (electronics)
