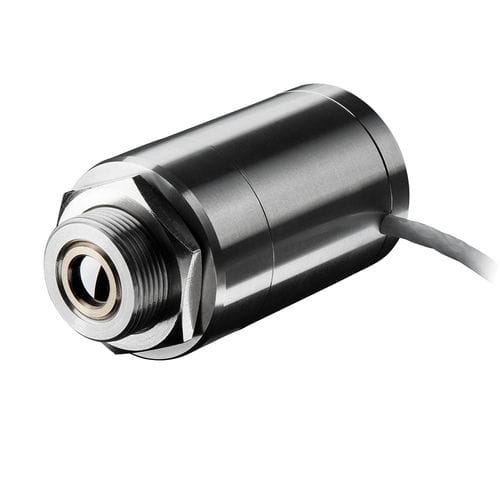

LED pyrometer CSmicro LT HS

°CK15:1

The pyrometer optris CSmicro LT HS sets new performance standards in the measurement of slightest temperature differences of 0.025 K. Due to the stainless steel measuring head, it is perfectly suited for installation in especially limited and cramped spaces. The compact infrared thermometer measures precisely in a temperature range from -20°C to 150°C and is equipped with an intelligent LED display, utilizable as alarm signalization, target support, self-diagnosis or temperature-code display. New: The CSmicro series can now be operated via the new IR mobile App (Android). The App enables to monitor and analyze infrared temperature measurements on a connected smartphone or tablet. Measurement Specifications • Optical resolution (90% energy): 15:1 • CF-lens (optional): 3.4 mm @ 50 mm • Repeatability: ± 0.3% or ± 0.3°C1)2) • Temperature coefficient: ± 0.05 K/K or ± 0.05 %/K3) • NETD: 0.025 K4) • Emissivity / gain (adjustable via software): 0.100 – 1.100 • Transmissivity (adjustable via software): 0.100 – 1.100 • Signal processing (parameter adjustable via software): peak hold, valley hold, average, extended hold function with threshold and hysteresis • Dimensions of electronics: length: 35 mm, diameter: 12 mm • Software: optris® Compact Connect (Windows) IR mobile (Android) General Specifications • Environmental rating: IP 65 (NEMA-4) • Ambient temperature: –20 … 85 °C (sensing head) –20 … 80 °C (electronics) –20 … 75 °C (electronics / mA version)5) • Storage temperature: -40 … 85°C • Relative humidity: 10 – 95%, non condensing • Shock: IEC 60068-2-27 (25G and 50G) • Vibration:IEC 60068-2-6 (sinus shaped), IEC 60068-2-64 (broadband noise)
